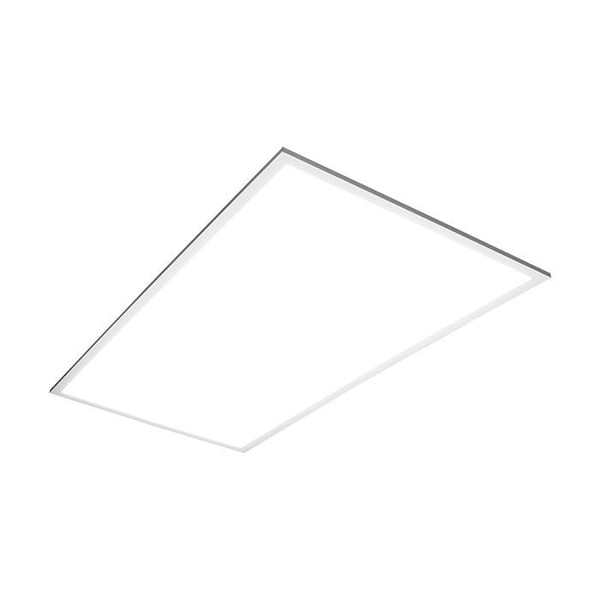

TCP® FP4UZD4641K Recessed Flat Panel Luminaire, LED Lamp, 120 to 277 VAC

Selected FP4UZD4641KTCP® FP4UZD4641K Recessed Flat Panel Luminaire, LED Lamp, 120 to 277 VAC
FP4UZD4641KTCP® FP4UZD4641K Recessed Flat Panel Luminaire, LED Lamp, 120 to 277 VAC

Documents

Short Description

TCP® LED flat panel luminaire features a slim, low profile design with full panel diffusion and superior uniformity. It offers a cost effective solution to maximize savings and take advantage of utility rebates without sacrificing performance.

Features

  • Excellent color consistency and CRI
  • Up to 51% less energy than fluorescent alternatives
  • Utilizes edge-lit technology
  • Slim, low profile design
  • Fits standard 1 in and 9/16 in T-bar grid ceilings

Specification

Lamp Type
LED
Lamp Wattage
46 W
Lens Type
Opaque
Light Color
White
Lumens
5200 Lumens
Mounting Type
Ceiling
Type
Recessed
Voltage Rating
120 to 277 VAC
Standard & Approvals
UL Listed, cULus Listed, ANSI Compliant, RoHS Compliant, DLC 4.4, IC Rated
Average Life
50000 hr
Ballast Type
0 to 10 VDC Dimmable
Color Rendering Index (CRI)
>80
Color Temperature
4100 K
Enclosure Type
IP20
Application
For offices, schools, retails, healthcare, hospitality, other T-grid, commercial ceilings and damp locations
Shade Type
Acrylic White Guide
Recessed Trim Type
T-Bar Grid
Dimensions
2 ft L x 4 ft W
