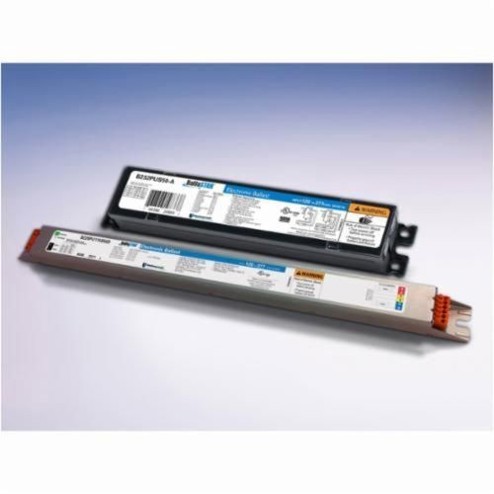

***CLEARANCE*** Universal™ Ballastar® B228PU95S50D001C High Frequency Electronic Dimming Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed/Rapid, 0.95 Ballast Factor
***CLEARANCE*** Universal™ Ballastar® B228PU95S50D001C High Frequency Electronic Dimming Ballast, T5 Lamp, 28 W Lamp, 120 to 277 VAC, Programmed/Rapid, 0.95 Ballast Factor
SKU: MAGB228PU95S50D001C
Manufacturer Part Number: B228PU95S50D001C
UPC: 768386240990
Features
- Step dimming
- Installation flexibility: Ballastar® light level switching products make it easy-to implement controllable lighting solutions with only one additional line voltage conductor. Ballastar® ballasts can be controlled using two standard toggle switches; no sophisticated control devices are needed
- Modern level switching technology: Ballastar® light level switching ballasts vary the light output of all the lamps, eliminating fixture dark spots associated with inboard/outboard switching schemes
- Control options: application of the Ballastar® family is not limited to manual control with toggle switches
- Other control options, like occupancy sensors, building management technologies or any other device using a contact closure, can be implemented with Ballastar®
- Easy system setup: Ballastar® light level switching ballasts are shipped from the factory with predefined light levels; no programming is required
- Ballastar® T5 products provide two predefined control levels: 50 and 100 percent of the rated input power, these ballasts are featured with universal input voltage (120V to 277V) for installation flexibility
- Ballastar® S30 products for T8 lamps provide three predefined control levels: 30, 60 percent and the standard 0.88, dedicated voltage ballasts for 120V and 277V systems are available
- Energy management devices
- For (2) F28T5 lamps
- >1.7 crest factor
- Meets FCC Part 18 (Non-Consumer), Limits for EMI/RFI
Specification
| Frequency Rating | 50/60 Hz |
|---|---|
| Lamp Type | T5 |
| Lamp Wattage | 28 W |
| Minimum Starting Temperature | 10 deg C |
| Mounting Type | Surface |
| Number of Lamps | 2 |
| Start Type | Programmed Rapid |
| Total Harmonic Distortion | <10% |
| Voltage Rating | 120 to 277 VAC |
| Wattage | 60 W |
| Ballast Factor | 0.95 |
| Clearance | YES |
| Dimmable | Yes |
| Enclosure Type | NEMA 1 |
| Dimensions | 16.28 in L x 1.18 in W x 1 in H |
| Amperage Rating | 0.59 A |
| Standard & Approvals | ANSI C82.11, C62.41, cULus Listed |
| Type | High Frequency |
| Thermal Protection | Class P |
| Temperature Range | 40 deg C |
| Power Factor | >0.95 |
