***CLEARANCE*** Universal™ Multi-5® M250ML5AC3M500K HID Distributor Replacement Kit, HID Metal Halide Lamp, 250 W Lamp, 120/208/240/277/480 VAC, Probe, 1 Ballast Factor
***CLEARANCE*** Universal™ Multi-5® M250ML5AC3M500K HID Distributor Replacement Kit, HID Metal Halide Lamp, 250 W Lamp, 120/208/240/277/480 VAC, Probe, 1 Ballast Factor
SKU: MAGM250ML5AC3M500K
Manufacturer Part Number: M250ML5AC3M500K
UPC: 768386183457
Documents
Short Description
Features
- Prewired capacitor and ignitor (if required) to save installation time and reduce wiring errors
- Color-coded leads to reduce risk of incorrect wiring inside the fixture
- Features that exceed UL standards, including capacitors that offer trip fault protection
- Simple installation instructions and troubleshooting tips
- UL Insulation Class H of 180 deg C
- Multi-5™ voltages
- CWA type circuit
- C&C style
- 3 x 4 in size frame
- Mogul or medium socket
- Adjustable mounting bracket
- All ignitors will be epoxy-filled with either a plastic or aluminum external housing
- 8/5/4/4/2 A Fuse rating
- 285 V Nominal open circuit voltage
- 10% Regulation
- 15 MFD, 1.65 in Dia x 3.82 in H Capacitor

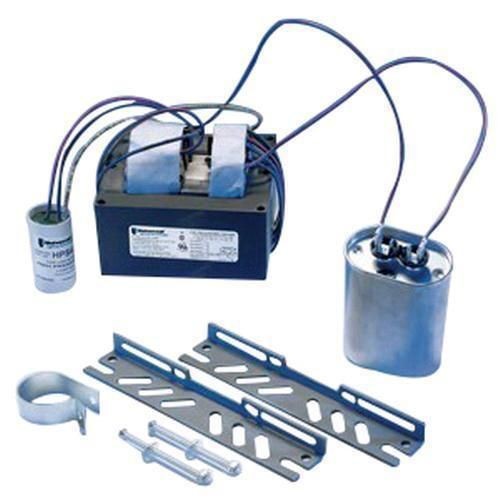

- Core and coil, a properly rated capacitor and all other components required for ballast replacement
Specification
Standard & Approvals | UL Listed, UL Insulation Class H, CSA Certified, ANSI M58/H37 |
---|---|
Power Factor | 0.9 |
Start Type | Probe |
Voltage Rating | 120/208/240/277/480 VAC |
Amperage Rating | 2.5/1.4/1.25/1.1/0.65 A |
Frequency Rating | 60 Hz |
Lamp Base Type | Medium |
Lamp Type | Metal Halide |
Lamp Wattage | 250 W |
Minimum Starting Temperature | -22 deg F |
Number of Lamps | 1 |
Wattage | 295 W |
Dimensions | 3.938 in L x 2.812 in W x 4.5 in H |
