***CLEARANCE*** Universal™ Uni-Pak™ M50MLTLC3M500K HID Distributor Replacement Kit, HID Metal Halide Lamp, 50 W Lamp, 120/208/240/277 VAC, Pulse, 1 Ballast Factor

Selected ***CLEARANCE*** Universal™ Uni-Pak™ M50MLTLC3M500K HID Distributor Replacement Kit, HID Metal Halide Lamp, 50 W Lamp, 120/208/240/277 VAC, Pulse, 1 Ballast Factor
***CLEARANCE*** Universal™ Uni-Pak™ M50MLTLC3M500K HID Distributor Replacement Kit, HID Metal Halide Lamp, 50 W Lamp, 120/208/240/277 VAC, Pulse, 1 Ballast Factor

Short Description

Universal Lighting Technologies ("Universal") offers a wide array of ballasts for High Intensity Discharge (HID) lamps. Applications include Metal Halide (MH), Pulse Start Metal Halide (PSMH), and high pressure Sodium (HPS) lamps ranging from 35 to 1500 watts. We’re the technology leader in every category of HID ballasts. Our Universal Precise line is the latest innovation in magnetic core & coil technology in years. Core & coil ballasts are used in over 90% of all HID fixtures. Universal’s core & coil models are available for all HID lamp types, including single-, dual-, tri-, quad- and multi-volt designs. For added versatility and reduced inventory costs, Universal has also introduced the industry’s first Multi-5™ ballast (120, 208, 240, 277, or 480 V), featuring a 480 V tap on a conventional quad tap ballast. Universal’s Universal Precise is the next generation in core & coil technology, featuring a smaller, lightweight design and improved temperature performance. Universal Precise fits virtually all applications, and has no exposed live metal parts. There are no plastic extrusions, which prevents breakage during shipping. Color-coded leads make installation easy.

Features

  • Prewired capacitor and ignitor (if required) to save installation time and reduce wiring errors
  • Color-coded leads to reduce risk of incorrect wiring inside the fixture
  • Features that exceed UL standards, including capacitors that offer trip fault protection
  • Simple installation instructions and troubleshooting tips
  • UL Insulation Class H of 180 deg C
  • Quad voltages
  • High Reactance/Lag type circuit
  • C&C style
  • 3 x 4 in size frame
  • Mogul or medium socket
  • Adjustable mounting bracket
  • All ignitors will be epoxy-filled with either a plastic or aluminum external housing
  • 3/3/2/2 A Fuse rating
  • 255 V Nominal open circuit voltage
  • 5% Line Volts, 10% Lamp Watts Regulation
  • 6 MFD, 1.26 in Dia x 2.83 in H Capacitor

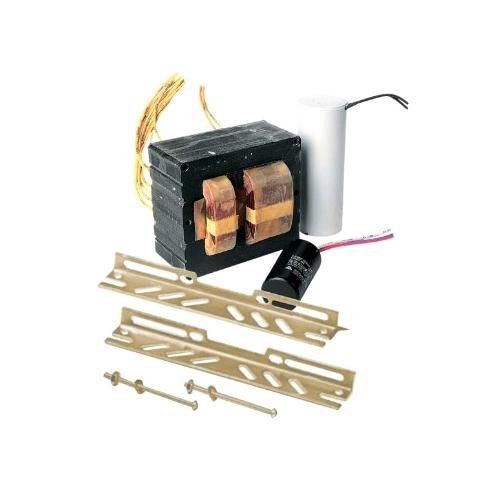

  • Core and coil, a properly rated capacitor and all other components required for ballast replacement

Specification

Frequency Rating
60 Hz
Lamp Base Type
Medium
Lamp Type
Metal Halide
Minimum Starting Temperature
-22 deg F
Number of Lamps
1
Clearance
YES
Minimum Order Qty
1
Order Interval
1
Ballast Factor
1
Dimmable
No
Power Factor
0.9
Start Type
Pulse
Voltage Rating
120/208/240/277 VAC
Application
Factories, Warehouses, Gymnasiums and Retail Stores
Standard & Approvals
UL Listed, UL Insulation Class H, CSA Certified, ANSI M110
Dimensions
3.938 in L x 2.812 in W x 2.4 in H
Catalog ID
MAGM50MLTLC3M500K
Amperage Rating
0.55/0.3/0.27/0.24 A
Lamp Wattage
50 W
Wattage
65 W
