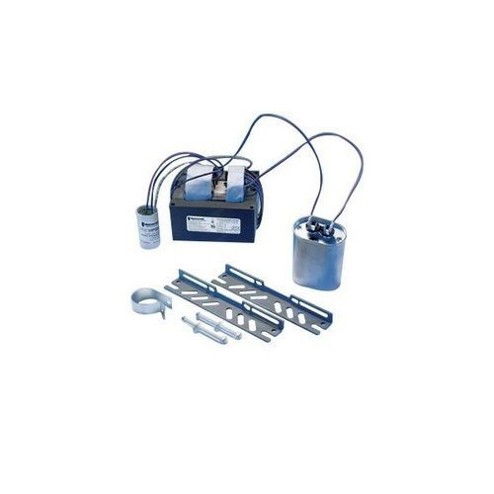

Universal™ Multi-5® P1000ML5AC5M500K HID Distributor Replacement Kit, HID Metal Halide Lamp, 1000 W Lamp, 120/208/240/277/480 VAC, Pulse, 1 Ballast Factor

Universal™ Multi-5® P1000ML5AC5M500K HID Distributor Replacement Kit, HID Metal Halide Lamp, 1000 W Lamp, 120/208/240/277/480 VAC, Pulse, 1 Ballast Factor
SKU: MAGP1000ML5AC5M500K
Manufacturer Part Number: P1000ML5AC5M500K
UPC: 768386244523
Short Description
Features
- Prewired capacitor and ignitor (if required) to save installation time and reduce wiring errors
- Color-coded leads to reduce risk of incorrect wiring inside the fixture
- Features that exceed UL standards, including capacitors that offer trip fault protection
- Simple installation instructions and troubleshooting tips
- UL Insulation Class H of 180 deg C
- Multi-5™ voltages
- CWA type circuit
- C&C style
- 4-1/4 x 5-3/4 in size frame
- Mogul or medium socket
- All ignitors will be epoxy-filled with either a plastic or aluminum external housing
- 20/15/10/10/10 A Fuse rating
- 420 V Nominal open circuit voltage
- 10% Regulation
- 24 MFD, 2.91 in Dia x 3.9 in H Capacitor
- Core and coil, a properly rated capacitor and all other components required for ballast replacement
Specification
Frequency Rating | 60 Hz |
---|---|
Lamp Base Type | Medium |
Lamp Type | Metal Halide |
Lamp Wattage | 1000 W |
Minimum Starting Temperature | -22 deg F |
Number of Lamps | 1 |
Power Factor | 0.9 |
Start Type | Pulse |
Ballast Factor | 1 |
Dimmable | No |
Voltage Rating | 120/208/240/277/480 VAC |
Standard & Approvals | UL Listed, UL Insulation Class H, CSA Certified, ANSI M141 |
Wattage | 1080 W |
Dimensions | 5.75 in L x 4.25 in W x 5.05 in H |
Amperage Rating | 8.95/5.15/4.45/3.85/2.25 A |
