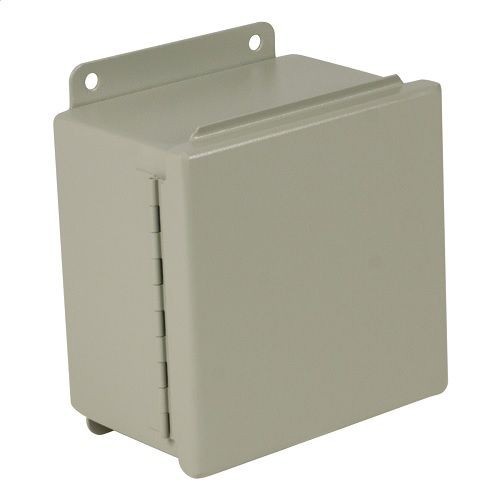

Wiegmann® B080603CH B-CH JIC Wall Mount Enclosure, 6 in W x 3-1/2 in D, NEMA 12/13, Carbon Steel
Wiegmann® B080603CH B-CH JIC Wall Mount Enclosure, 6 in W x 3-1/2 in D, NEMA 12/13, Carbon Steel
SKU: WIEB080603CH
Manufacturer Part Number: B080603CH
UPC: 786725331406
Features
- Intended for use as electrical junction boxes, terminal wiring boxes and instrument housings, hinged door provides convenient access, designed to provide protection from dust, dirt, oil and water
- Body 14 ga and doors fabricated from 16 ga steel
- Continuously welded seams ground smooth, less knockouts or holes
- Lids are sealed with closed cell oil resistant neoprene gasket
- External mounting plates, top and bottom of enclosure
- Weldnuts are provided on models 6 x 4 in and larger to secure optional back panel
- External screw clamps are quick and easy to operate
- Grounding provisions provided
- ANSI-61 gray polyester powder inside and out finish
- 8-3/4 x 4 in mounting
- 9-1/2 x 7 in overall
Specification
| Material | Carbon Steel |
|---|---|
| Mounting Type | Wall |
| NEMA Rating | NEMA 12/13 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Capacity | 168 cu-in |
| Catalog ID | WIEB080603CH |
| Color | Gray |
| Cover Type | Continuous Hinged |
| Depth | 3-1/2 in |
| Finish | Polyester Powder Coated |
| Panel Size | 4.88 in H x 6.88 in W |
| Series | B-CH |
| Width | 6 in |
| Standard & Approvals | ARRA Compliant, Buy American Act Compliant, RoHS Compliant, CSA LL66078, JIC EL-1-71, NEMA/EEMAC Type 12/13, UL File No. E23553/E64791, UL 50, PPROP65: Cancer and Reproductive Harm - www.P65warnings.ca.gov |
