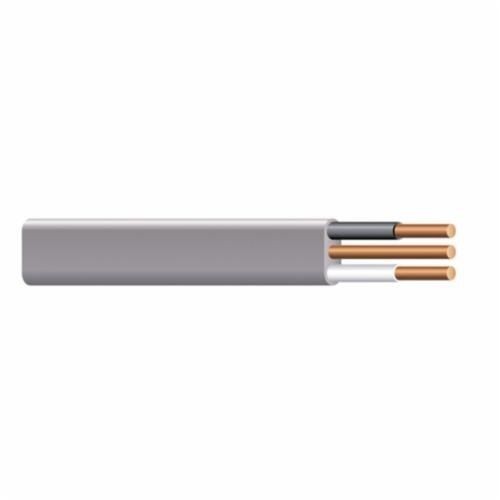

Type UF-B Underground Feeder Cable With Ground Wire, 600 VAC, (3) 12 AWG Copper Conductor

Selected Type UF-B Underground Feeder Cable With Ground Wire, 600 VAC, (3) 12 AWG Copper Conductor
Type UF-B Underground Feeder Cable With Ground Wire, 600 VAC, (3) 12 AWG Copper Conductor

Features

  • Copper conductors are annealed (soft) copper, solid or compressed stranded
  • Phase conductors are polyvinyl chloride (PVC) insulated, nylon jacketed, color coded for identification purposes
  • Southwire copper UF-B cable is generally used as feeder to outside post lamps, pumps and other loads or apparatus fed from a distribution point in an existing building as specified in the 2011 national electrical Code®
  • UF-B cable may be used underground, including direct burial
  • 30 mil insulation thickness
  • White, gray conductor
  • Moisture, fungus, sunlight resistant

Specification

Insulation Material
PVC
Jacket Color
Gray
Jacket Material
Nylon
Number of Conductors
3
Voltage Rating
600 V
Amperage Rating
20 A
Conductor Size
12 AWG
Conductor Type
Copper
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, UL 83, UL 493, Federal Specification A-A-59544, National Electrical Code NFPA 70, 2011 Edition, Compliant
Application
For interior branch circuit wiring in residential or agricultural buildings
Type
Type UF-B
Temperature Rating
90
Strands
1
Length
1000
