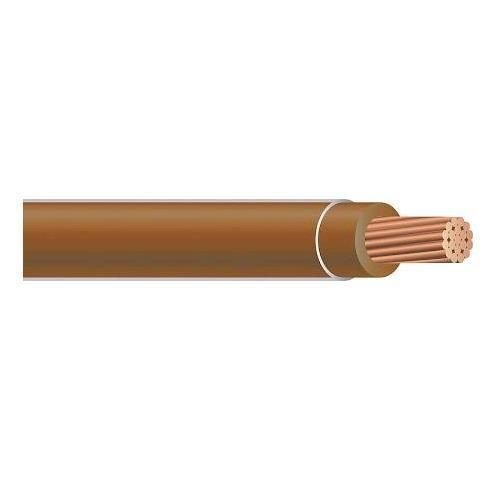

THHN Wire, Stranded, 14 AWG, 1 Conductor, Copper, 600 Volts, Brown, 500 ft
Selected THHN14STRBNTHHN Wire, Stranded, 14 AWG, 1 Conductor, Copper, 600 Volts, Brown, 500 ft
THHN Wire, Stranded, 14 AWG, 1 Conductor, Copper, 600 Volts, Brown, 500 ft
SKU: WCUTHHN14STRBN
Manufacturer Part Number: THHN14STRBN
Documents
Specification
| Insulation Material | Polyvinyl Chloride |
|---|---|
| Jacket Color | Brown |
| Jacket Material | Polyamide;Nylon |
| Length | 500 ft |
| Number of Conductors | 1 |
| Outside Diameter | 0.109 in |
| Temperature Rating | +90 Deg C @ Wet/Dry Locations;+75 Deg C in Oil/Coolants |
| Type | Stranded |
| Voltage Rating | 600 V |
| Amperage Rating | 25 A |
| Conductor Size | 14 AWG |
| Conductor Material | Copper |
