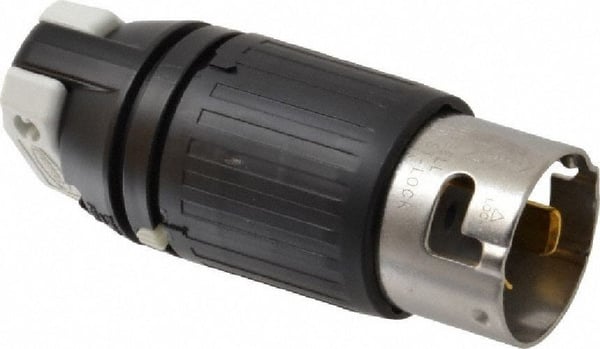

Hubbell, Twist Lock Plug, 2 Pole, 3 Wire, 50 Ampere, 250 Volts, Black & White
Hubbell, Twist Lock Plug, 2 Pole, 3 Wire, 50 Ampere, 250 Volts, Black & White
SKU: HWDCS8265C
Manufacturer Part Number: CS8265C
UPC: 783585828480
Documents
Features
- Super tough nylon housing offers better impact qualities
- Stainless steel shroud protects contacts and prevents mismating
- Heavy duty 2-piece external cord clamp provides maximum strain relief
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Thermoplastic polyester interior provides heat resistance and impact strength
- Glass reinforced pet blade holder material, terminal retainer material, terminal retainer material
- Brass blade material
- Bronze box terminal clamp material
- Stainless steel terminal screw material
- 302/304 stainless steel cord clamp screw material, body holding screw material
- 8 to 4 AWG stranded copper wire only terminal accommodation
Specification
| Material | Nylon |
|---|---|
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 50 A |
| Color | Black/White |
| Enclosure | IP20 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 250 VAC |
| Grade | Industrial |
| Dimensions | 6.37 x 2.56 x 2.56 in |
| Cord Diameter | 3/4 to 1-1/8 in |
| Catalog ID | HWDCS8265C |
| NEMA Rating | Non-NEMA |
| Standard & Approvals | UL 498, CSA C22.2 No.42 |
| Type | Grounding |
