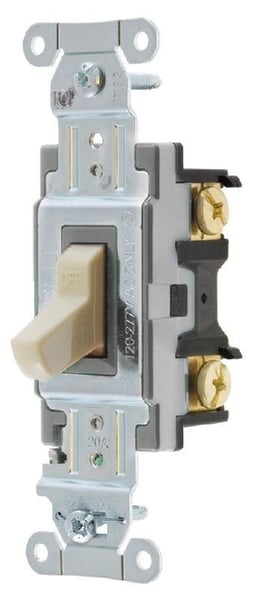

Hubbell, Toggle Switch, Double Pole, 120/277 VAC, 20 Ampere, Ivory, Back and Side Wired
Hubbell, Toggle Switch, Double Pole, 120/277 VAC, 20 Ampere, Ivory, Back and Side Wired
SKU: HWDCSB220I
Manufacturer Part Number: CSB220I
UPC: 783585154138
Documents
Features
- Thread cleaning captive mounting screw
- Abuse resistant nylon toggle
- Steel, zinc plated bridge is corrosion resistant
- 2 position
- Indoor Dry unless protected by additional means
- Specification grade
- 14 - 10 AWG
- 1 hp at 120 VAC, 2 hp at 208/240/277 VAC
- Nylon toggle
- UL 94-V2 flammability
- Back and side wire connection
- 5540 W power
- Positive snap action
- General purpose
Specification
| Material | Thermoset |
|---|---|
| Number Of Poles | 2 |
| Operating Cycles | 50000 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Actuator | Toggle |
| Amperage Rating | 20 A |
| Catalog ID | HWDCSB220I |
| Color | Ivory |
| Dimensions | 4.18 x 1.49 x 1.83 in |
| Environmental Conditions | -40 to 75 deg C |
| Power Rating | 1 hp/2 hp |
| Terminal Type | Screw |
| Voltage Rating | 120 to 277 VAC |
| Application | Commercial |
| Standard & Approvals | CSA Certified, Federal Specification W-S-896, NEMA WD-1, UL Listed |
