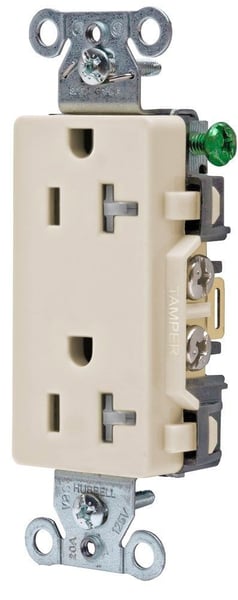

Wiring Device-Kellems StyleLine® DR20LATR Decorator Duplex Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
Wiring Device-Kellems StyleLine® DR20LATR Decorator Duplex Standard Tamper-Resistant Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Light Almond
SKU: HWDDR20LATR
Manufacturer Part Number: DR20LATR
UPC: 783585144450
Documents
Features
- Aesthetic Style Line® decorator design
- Smooth face
- Tamper resistant shutter complies with national electrical code requirements
- Triple wipe contacts
Specification
| Grade | Commercial/Industrial/Specification |
|---|---|
| Material | Nylon |
| NEMA Rating | NEMA 5-20R |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Back/Side Wired |
| Voltage Rating | 125 VAC |
| Standard & Approvals | RoHS Compliant, CSA C22.2 No. 42, Federal Specification WC596, NEMA WD1/WD5, UL 498 |
| Amperage Rating | 20 A |
| Color | Light Almond |
| Horsepower | 1 hp |
| Dimensions | 3.28 x 1.14 x 1.29 in |
| Application | Washdown Areas, Transit Centers, Amusement Parks and Open Air Markets |
| Type | Decorator Duplex Standard Tamper-Resistant |
