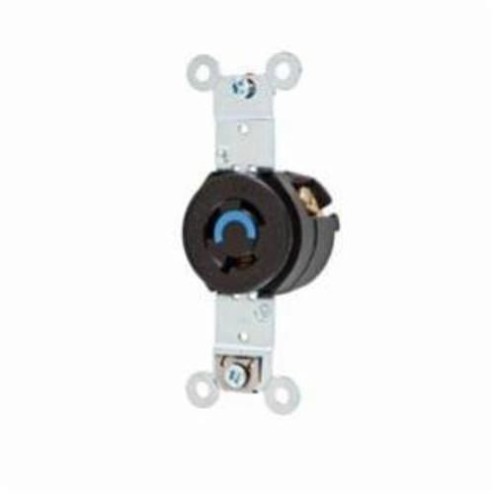

Wiring Device-Kellems Twist-Lock® HBL4560 Grounding Locking Receptacle With Cover, 250 VAC, 15 A, 2 Poles, 3 Wires
Wiring Device-Kellems Twist-Lock® HBL4560 Grounding Locking Receptacle With Cover, 250 VAC, 15 A, 2 Poles, 3 Wires
SKU: HWDHBL4560
Manufacturer Part Number: HBL4560
UPC: 783585236605
Features
- Reinforced thermoplastic construction
Specification
| Grade | Industrial |
|---|---|
| Material | Polyester |
| Number Of Poles | 2 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 15 A |
| Color | Black |
| Dimensions | 3.28 x 1.53 x 1.27 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Type | Grounding |
| Voltage Rating | 250 VAC |
| Application | For heavy duty industrial applications |
| Standard & Approvals | UL 498 Listed, Federal Specifications WC596, CSA C22.2 No.42 Certified |
| Horsepower | 1.5 hp |
| Catalog ID | HWDHBL4560 |
| NEMA Rating | NEMA L6-15R |
