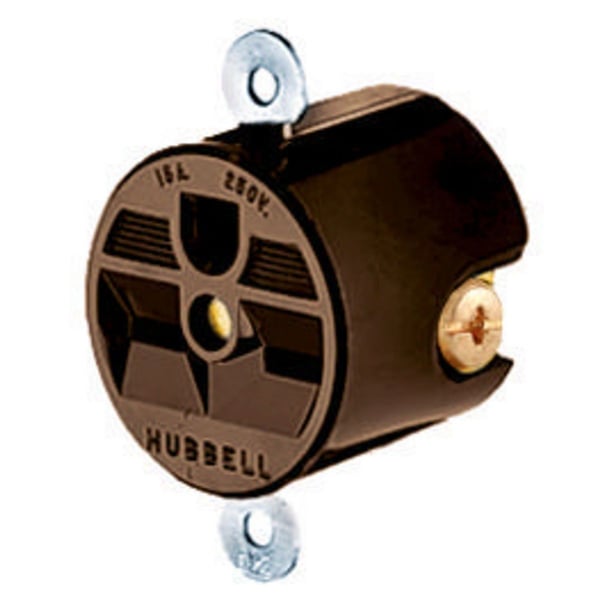

Wiring Device-Kellems HBL5658 1-Phase Grounding Panel Mount Standard Sized Panel Mount Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, Brown

Selected HBL5658Wiring Device-Kellems HBL5658 1-Phase Grounding Panel Mount Standard Sized Panel Mount Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, Brown
HBL5658Wiring Device-Kellems HBL5658 1-Phase Grounding Panel Mount Standard Sized Panel Mount Straight Blade Receptacle, 250 VAC, 15 A, 2 Poles, 3 Wires, Brown

Features

  • Slender/compact design
  • Triple wipe contacts
  • Panel mount

Specification

Minimum Order Qty
1
Order Interval
1
Catalog ID
HWDHBL5658
Standard & Approvals
RoHS Compliant, UL 498, CSA File No. E2186, CSA C22.2 No. 42, CSA File No. 285, NEMA WD1/WD5/WD6
Temperature Rating
-40 to 75 deg C
Terminal Type
Side Wire
Voltage Rating
250 VAC
Amperage Rating
15 A
NEMA Rating
6-15R
Number Of Poles
2
Number of Wires
3
Type
1-Phase Grounding Panel Mount Standard Sized Panel Mount
Grade
Industrial
Dimensions
1.75 x 1.13 x 1.47 in
Color
Brown
Material
Thermoplastic/Composite
