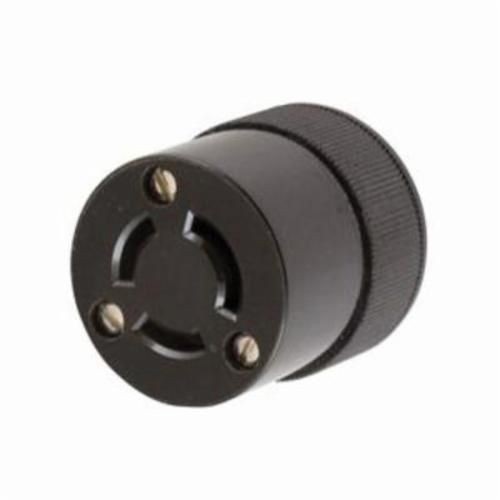

Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7555 Grounding Locking Connector, 250/125 VAC, 10/15 A, 3 Poles, 3 Wires
Wiring Device-Kellems Twist-Lock® Insulgrip® HBL7555 Grounding Locking Connector, 250/125 VAC, 10/15 A, 3 Poles, 3 Wires
SKU: HWDHBL7555
Manufacturer Part Number: HBL7555
UPC: 783585237626
Documents
Features
- Clear polycarbonate terminal retainer material
- Natural (white) nylon cord clamp
- Cold rolled steel nickel plated terminal clamp
- NO 8 to 32 brass (white finish on neutral screw when used) terminal screw
- NO 8 to 32 brass (green finish) ground screw
- Zinc plated steel, multi drive cord clamp screw and body holding screw
- Natural white nylon body contact carrier material
- Brass contact spring and spring binding plate
- 0.031 in brass ground contact
- Molded in/stamped on ratings
- Permanently ink marked on product catalog number
- Withstand 2000 VAC minimum dielectric voltage
- Certified for current interrupting at full rated current
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 0.75
- 15 A 14 AWG terminal accommodation
- Terminals identified in accordance with UL 498 (X, Y, Z, white, green)
- HB or better per UL 94 or CSA 22.2 NO 0.6 flammability
- Individually molded face for each blade configuration keeps debris out of plug interior
- Ribbed nylon housing is impact and chemical resistant
- Roomy wiring chamber provides ample space for wiring
Specification
| Grade | Industrial |
|---|---|
| Material | Nylon |
| Number Of Poles | 3 |
| Number of Wires | 3 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | HWDHBL7555 |
| Color | Black |
| Cord Diameter | 0.296 to 0.625 in |
| Temperature Rating | -40 to 75 deg C |
| Terminal Type | Screw |
| Voltage Rating | 125/250 VAC |
| Amperage Rating | 10 A |
| Type | Grounding |
| Enclosure | IP20 |
| Dimensions | 1.53 x 1.53 x 2.78 in |
