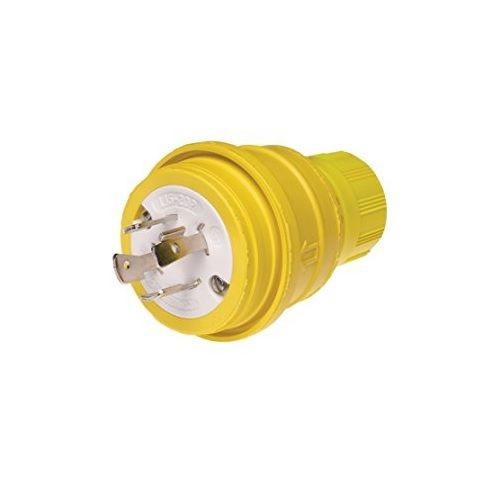

Woodhead® Watertite® 130147-0027 Straight Blade Plug With Locking Blade, 250 VAC, 20 A, 3 Poles, 4 Wires, Yellow

Selected 130147-0027Woodhead® Watertite® 130147-0027 Straight Blade Plug With Locking Blade, 250 VAC, 20 A, 3 Poles, 4 Wires, Yellow
130147-0027Woodhead® Watertite® 130147-0027 Straight Blade Plug With Locking Blade, 250 VAC, 20 A, 3 Poles, 4 Wires, Yellow

Documents

Short Description

Woodhead Watertite wet-location wiring devices are rated for high pressure hose-down application up to 1,000 psi, the benchmark for the industry. The only devices made of NEo-TEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include: unique multiple ring seals that lock snugly protecting against moisture and contaminants; sturdy compression type cord grips that provide 93.0kg (205 lbs) of pull-out strength; and a protective-closure cap that seals the connector when it is not in use. Woodhead Watertite products are time-tested devices that professionals demand.

Features

  • Multiple seal plug/connector interface keeps out contaminants; resists vapor and water from high pressure wash down up to 1000psi
  • Color-coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
  • Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • Three piece strain relief seals cord without damaging the cord
  • NEo - TEX® Paracril OZO rubber outer housing and grommet
  • Nickel-plated brass plug blades and connector contacts
  • Stainless steel face screws
  • Nylon face insert
  • Brass wire saddle clamp
  • Lexan receptacle cover plate and closure caps
  • F3 3/4 in cord grip body size
  • Male plug

Specification

Grade
Industrial
Material
Rubber
NEMA Rating
NEMA L15-20
Number Of Poles
3
Number of Wires
4
Series
130147
Temperature Rating
-40 to 75 deg C
Terminal Type
Screw
Voltage Rating
250 VAC
Application
For wet location use, breweries, dairies, food and beverage, wastewater treatment and water treatment
Standard & Approvals
UL E10176, CSA LR6837
Amperage Rating
20 A
Color
Yellow
Enclosure
IP67
Cord Diameter
0.687 to 0.812 in
