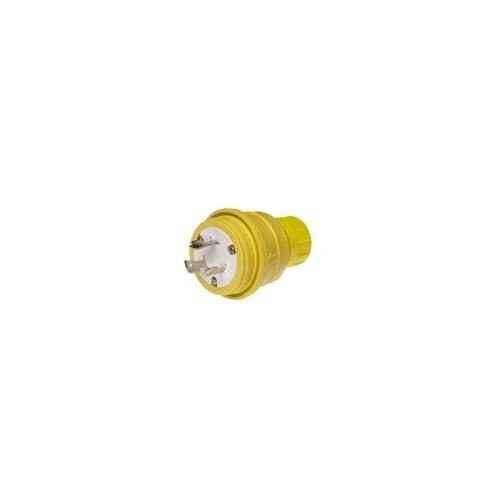

Woodhead® Watertite® 26W49 130147 Male Locking Blade Plug, 277 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Selected Woodhead® Watertite® 26W49 130147 Male Locking Blade Plug, 277 VAC, 20 A, 2 Poles, 3 Wires, Yellow
Woodhead® Watertite® 26W49 130147 Male Locking Blade Plug, 277 VAC, 20 A, 2 Poles, 3 Wires, Yellow

Short Description

Woodhead® Watertite® wet-location wiring devices are rated for high pressure hose down application up to 1000 psi, the benchmark for the industry. The only devices made of NEo-TEX® Paracril OZO rubber, yields ultimate performance within a wide temperature range, around many oils, chemicals and abrasive conditions. Additional features include - unique multiple ring seals that lock snugly protecting against moisture and contaminants, sturdy compression type cord grips that provide high pull-out strength and a protective closure cap that seals the connector when it is not in use. Woodhead® Watertite® products are time tested devices that professionals demand.

Features

  • Multiple seal plug interface keeps out contaminants, resists vapor and water from high pressure wash down up to 1000 psi
  • Color coded 1/4 in terminal screws preset in open position, ready to wire
  • Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
  • Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
  • Transparent wiring guide to verify all wire strands are in place before securing wire
  • Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
  • 3-piece strain relief seals cord without damaging the cord

Specification

Material
NEoTEX Paracril OZO Rubber
NEMA Rating
NEMA L7-20P
Number Of Poles
2
Number of Wires
3
Minimum Order Qty
1
Order Interval
1
Amperage Rating
20 A
Catalog ID
WOO26W49
Color
Yellow
Cord Diameter
0.187 to 0.812
Dimensions
2-1/2 in Dia x 3 in L
Enclosure
NEMA 1/3/4/4X/5/6/6P/12/IP55/IP56/IP57/IP65/IP66/IP67
Series
130147
Temperature Rating
-40 to 75 deg C
Terminal Type
Screw
Type
Male
Voltage Rating
277 VAC
Application
Breweries, Dairies, Food, Beverage, Wastewater, Water Treatment and Wet Locations
Standard & Approvals
UL File No. E10176, CSA File No. LR6837, NSF/ANSI/3-A 14159-1
Horsepower
2 hp
