APG 7GSW4A0200 Style 7GSW4 Spiral Wound Gasket, 2 in Nominal, Class 150 Class, 304 Stainless Steel/Grafoil® RW, 2.75 in ID 4.13 in OD 0.125 in THK
Selected APG 7GSW4A0200 Style 7GSW4 Spiral Wound Gasket, 2 in Nominal, Class 150 Class, 304 Stainless Steel/Grafoil® RW, 2.75 in ID 4.13 in OD 0.125 in THK
APG 7GSW4A0200 Style 7GSW4 Spiral Wound Gasket, 2 in Nominal, Class 150 Class, 304 Stainless Steel/Grafoil® RW, 2.75 in ID 4.13 in OD 0.125 in THK
SKU: GAS7GSW4A0200
Manufacturer Part Number: 7GSW4A0200
Short Description

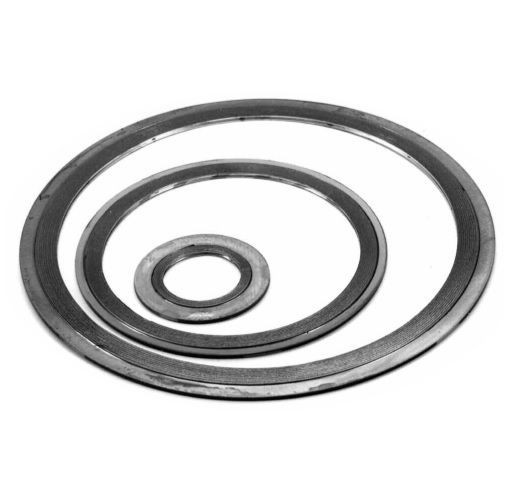

Spiral wound gaskets are special semi-metallic gaskets of great strength and resilience, therefore they are suitable for use under heavy operating conditions. Manufactured by spiral winding V-shaped metal strip and strip of non-metallic filler material. Spiral wound gaskets can be reinforced with an outer centering ring and/or inner retaining ring.
Specification
| Series | Style 7GSW4 |
|---|---|
| Temperature Rating | -320 to 975 deg F |
| Thickness | 0.125 in |
| Width | 0.175 in |
| Application | Sealing Flange Joints, Manhole and Handhole Covers, Tube Covers, Boilers, Heat Exchangers, Pressure Vessels, Pumps, Compressors and Valves |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Class | Class 150 |
| Material | 304 Stainless Steel/Grafoil® RW |
| Outside Diameter | 4.13 in |
| Nominal Size | 2 in |
| Inside Diameter | 2.75 in |
| Catalog ID | GAS7GSW4A0200 |
