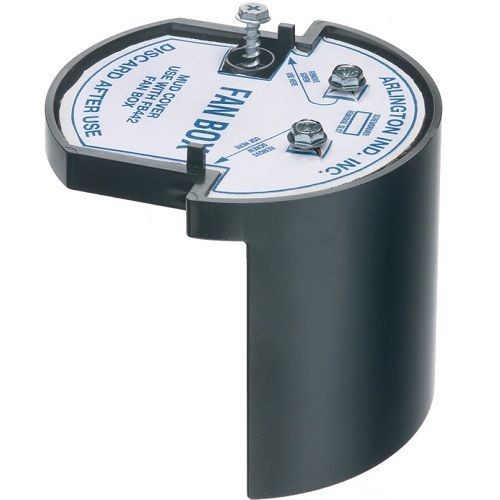

Arlington FB442 Fan/Fixture Mounting Box With Knockout, Plastic, 13.4 cu-in Capacity, 4.25 in L x 4.236 in W x 3.773 in H

Selected Arlington FB442 Fan/Fixture Mounting Box With Knockout, Plastic, 13.4 cu-in Capacity, 4.25 in L x 4.236 in W x 3.773 in H
Arlington FB442 Fan/Fixture Mounting Box With Knockout, Plastic, 13.4 cu-in Capacity, 4.25 in L x 4.236 in W x 3.773 in H

Documents

Short Description

Arlington’s new non-metallic device/sconce box saves time ! It comes ready to use and it’s easy-to install with a 3-1/4 in standard hole saw! You’ll get a super-secure installation too. As you push the box into the opening, its saw teeth cut a path through the drywall for the device screws. They hold the device securely in place. After installing the device, complete the job with a maxi-plate - required to fully cover the hole in the drywall.

Features

  • Lowest cost L-shaped fan/fixture boxes mount securely to single or double joists with a shipped-in-place center screw
  • No loose parts to misplace totally self-contained
  • Locator posts assure proper positioning of fan/fixture bracket
  • Fan/fixture installation screws are "parked"-ready for easy fan/fixture bracket installation
  • 2-hour fire rating
  • Screw-on mounting

Specification

Material
Non-Metallic
Mounting Type
Threaded
Minimum Order Qty
1
Order Interval
1
Capacity
13.4 cu-in
Catalog ID
ARTFB442
Color
Black
Diameter
4.24 in
Dimensions
4.25 in L x 4.236 in W x 3.773 in H
Series
FB
Shape
L
Application
Fan or Fixture
Standard & Approvals
UL E170558, CSA LR49636, RoHS Compliant
Includes
Ready-to-Tighten Center Screw, Installed NM Cable Connector, Mud Cover, Second KO and (2) Screws^^Ready-to-Tighten Center Screw, Installed NM Cable Connector, Mud Cover, Second KO and (2) Screws
