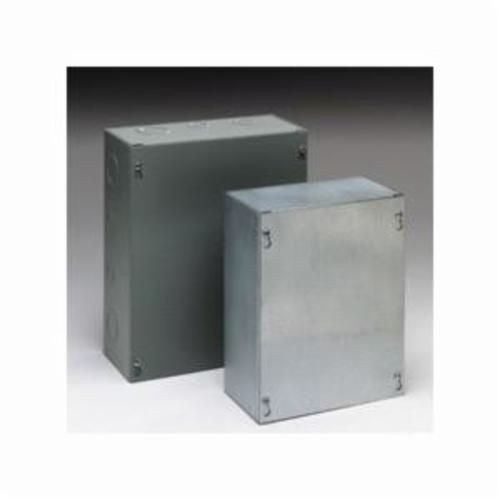

B-Line 18184 SCGV NK Junction Box Without Knockouts, 18 in L x 18 in W x 4 in D, NEMA 1, Steel
B-Line 18184 SCGV NK Junction Box Without Knockouts, 18 in L x 18 in W x 4 in D, NEMA 1, Steel
SKU: B-L18184SCGV-NK
Manufacturer Part Number: 18184 SCGV NK
UPC: 782051002393
Documents
Features
- Enclosure and cover are fabricated from code gauge steel or galvanized steel
- Enclosure body has mounting holes on the back
- Enclosures are available with or without knockouts on the sides, top and bottom ends
- Cover is secured to the body with plated hex head combo screws
- Keyhole slots provided in the cover allow easy access to the inside without removing the screws
- Hole provision for optional ground lug kit
- 16 gauge steel
Specification
| Material | Steel |
|---|---|
| Mounting Type | Wall |
| NEMA Rating | NEMA 1 |
| Width | 18 in |
| Cover Type | Screw |
| Depth | 4 in |
| Includes | Ground Lug Kit, Touch-Up Paint, Accessories |
| Finish | Wash and Phosphate Undercoat/Galvanized |
| Standard & Approvals | UL 50 Listed, CSA C22.2 NO 40 Certified |
| Application | For use with wiring boxes, junction and pull boxes, protects against contact with enclosed equipment |
| Length | 18 in |
