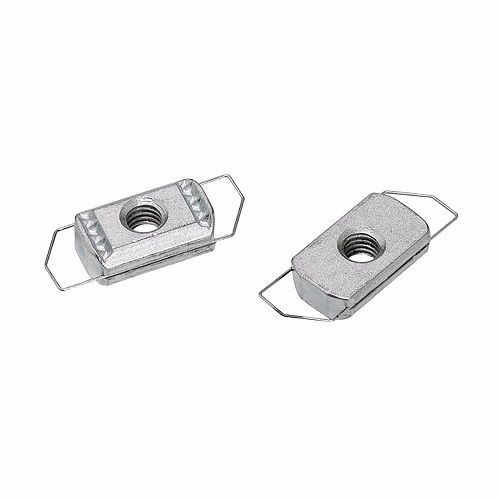

B-Line 4Dimension™ 4DWN225ZN Wire Wing Channel Nut, 1/2 in THK, 1/2-13 Thread, Steel

Selected B-Line 4Dimension™ 4DWN225ZN Wire Wing Channel Nut, 1/2 in THK, 1/2-13 Thread, Steel
B-Line 4Dimension™ 4DWN225ZN Wire Wing Channel Nut, 1/2 in THK, 1/2-13 Thread, Steel

Documents

Features

  • Can be used in traditional channel by bending wire down
  • Patent pending
  • Safety factor is 3
  • 1020 lb pull-out strength, 1250 lb slip strength
  • Bolted framing

Specification

Material
Steel
Minimum Order Qty
1
Order Interval
1
Catalog ID
B-L4DWN225ZN
Dimensions
1.992 in L x 0.75 in W x 0.35 in H
Finish
Zinc Plated
Series
4DWN
Specifications
1/2 in THK
Type
Wire Wing
Application
For strut fittings
Standard & Approvals
RoHS Compliant
Thread Size
1/2/2013 12:00:00 AM
