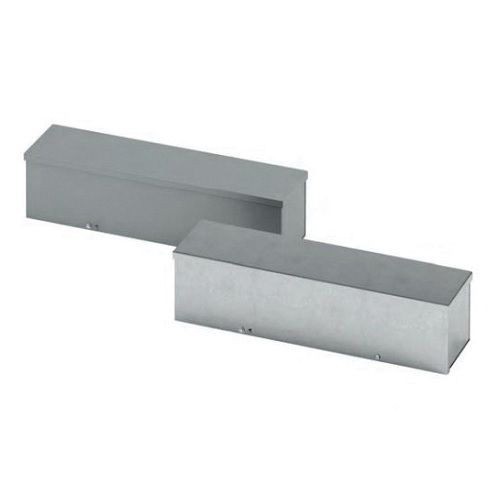

B-Line 6660 GRTGV NK Straight Section Wiring Trough, 60 in L x 6 in W x 6 in H, Screw Cover, Steel
B-Line 6660 GRTGV NK Straight Section Wiring Trough, 60 in L x 6 in W x 6 in H, Screw Cover, Steel
SKU: B-L6660GRTGV-NK
Manufacturer Part Number: 6660 GRTGV NK
UPC: 782051008081
Documents
Features
- Wash and phosphate undercoat or galvanized steel
- ANSI 61 gray acrylic electro coated finish
- Wireway body and cover are fabricated from 16 ga galvaneal steel for painted or galvanized steel
- Wireway body has embossed mounting holes on the back
- Wireway is available with or without knockouts on the bottom end only
- Cover is held secure by sliding it under the top end flange and fastening it with plated screws on the bottom end flange
- Sealing screws and lances are located at each end of the wireway cover
- Wireway exceeding 72 in L has two covers, a removable center channel and body supports
- 6 in D
Specification
| Height | 6 in |
|---|---|
| Length | 60 in |
| Material | Steel |
| NEMA Rating | NEMA 3R |
| Type | Straight Section |
| Application | Cable and Wire Junction, Distribution, Termination and Houses Runs of Control and Power Cable |
| Standard & Approvals | UL 870 Type 3R, CSA C22.2 NO 26 Type 3R, NEMA 3R |
| Color | ANSI 61 Gray |
| Cover Type | Screw |
| Finish | Galvanized |
