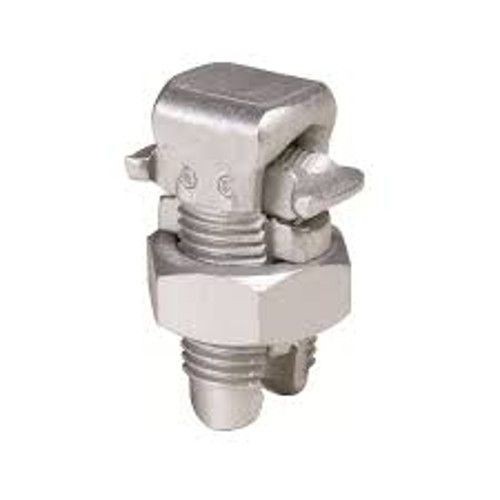

BURNDY® TRITAP™ SERVIT® KSA2/0 Split Bolt Connector, (1) 8 to 2/0 AWG, 2 to 2/0 AWG Conductor, 1.92 in L, Aluminum
BURNDY® TRITAP™ SERVIT® KSA2/0 Split Bolt Connector, (1) 8 to 2/0 AWG, 2 to 2/0 AWG Conductor, 1.92 in L, Aluminum
SKU: BURKSA2/0
Manufacturer Part Number: KSA2/0
UPC: 781810153505
Documents
Features
- No scratch brushing required
- No oxide inhibitor required
- Orients the conductor
- Provides maximum pressure and assures a secure connection of run and tap conductors
- Facilitates piercing the aluminum conductor surface oxides
- 90 deg C rated temperature
- Provides a low contact resistance
- Provides equal coefficient of expansion inhibits the reformation of oxides by producing a gas-tight seal
- Provides improved retention of minimum to maximum conductor combinations
- Conductor Type: Run: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper, Tap: Commercial Stranded Aluminum, Commercial Stranded And Solid Copper
- 1.12 in cross flats
- 2 - 2/0 AWG of aluminum run size (range) and copper stranded run (range), 8 - 2/0 AWG of copper tap range, copper solid tap (range) and aluminum tap size (range)
- 2/0 - 8 AWG Stranded of min tap size with max run size, 2/0 - 2/0 AWG stranded of max tap size with max run size, 2 AWG stranded compact - 8 AWG stranded min tap size with min run size
- High Strength Aluminum
Specification
| Length | 1.92 in |
|---|---|
| Material | Aluminum |
| Number of Conductors | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Catalog ID | BURKSA2/0 |
| Conductor Size | 8 to 2/0 AWG |
| Finish | Tin Plated |
| Series | KSA |
| Torque Rating | 385 in-lb |
| Width | 0.88 in |
| Application | All Combinations of Aluminum to Aluminum, Aluminum to Copper and Copper to Copper, Tin Plated Aluminum Alloy |
| Standard & Approvals | UL 486B, CSA Certified, RoHS Compliant |
