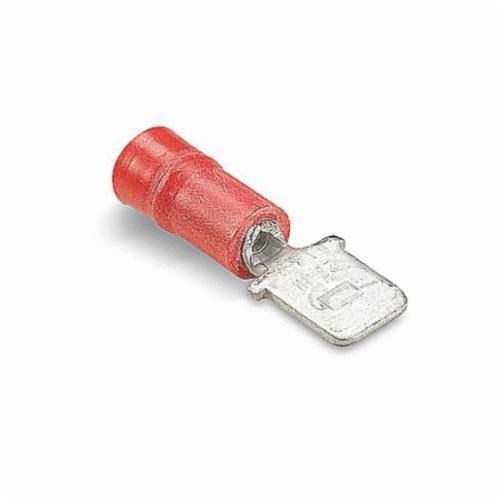

Catamount® TV18-250MD-XV Insulated Male Disconnect With Copper Sleeve, 22 to 16 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brass, Red

Selected TV18-250MD-LCatamount® TV18-250MD-XV Insulated Male Disconnect With Copper Sleeve, 22 to 16 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brass, Red
TV18-250MD-LCatamount® TV18-250MD-XV Insulated Male Disconnect With Copper Sleeve, 22 to 16 AWG Conductor, 0.25 in W x 0.032 in THK Tab, Brass, Red

Documents

Short Description

Catamount® offers durable, value-priced performance for a variety of commercial and residential applications. The product line offers cable ties, wire connectors, application tools, wire pulling lubricants and more

Features

  • Vinyl-insulated
  • Made of brass with copper sleeve
  • Easy entry copper insulation sleeve
  • 1000/Pack

Specification

Material
Brass
Series
250
Tab Size
0.25 in x 0.032 in
Temperature Rating
105 deg C
Terminal Type
Crimp
Type
Insulated
Voltage Rating
300 VAC
Standard & Approvals
RoHS Compliant, UL 94V-0 Flammability Rating
Conductor Size
22 to 16 AWG
Dimensions
0.858 in L
Color
Red
Finish
Electro-Tin Plated
Specifications
0.15 in Barrel ID
