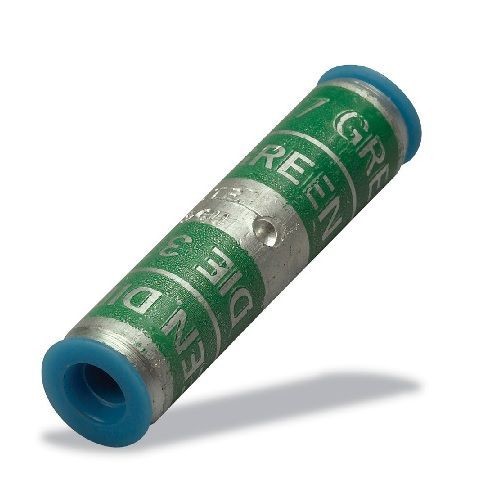

Color-Keyed® 60507-TB 2-Way Compression Splice Connector, 6 AWG Compact/Concentric/Stranded Aluminum/Copper Conductor, Die Code: 29, 1.63 in L, Aluminum
Color-Keyed® 60507-TB 2-Way Compression Splice Connector, 6 AWG Compact/Concentric/Stranded Aluminum/Copper Conductor, Die Code: 29, 1.63 in L, Aluminum
SKU: T-B60507-TB
Manufacturer Part Number: 60507-TB
UPC: 786210605074
Documents
Features
- Connectors are pre-filled with oxide inhibitor
- For 90 deg C certified to 600 VAC and recommended up to 35 kV applications
- For aluminum and copper concentric conductors and compact code aluminum strandings
- Permits aluminum conductors to be spliced to copper/aluminum conductors
- High conductivity material
Specification
| Length | 1.63 in |
|---|---|
| Material | Copper/Wrought Aluminum |
| Temperature Rating | 90 deg C |
| Type | 2-Way Splice |
| Voltage Rating | 35 kV |
| Standard & Approvals | UL E9809, CSA Certified, RoHS Compliant |
| Conductor Size | 6 AWG |
| Dimensions | 0.35 in W |
| Color | Gray |
| Conductor Type | Stranded |
| Die Code | 29 |
| Finish | Electro-Tin Plated |
