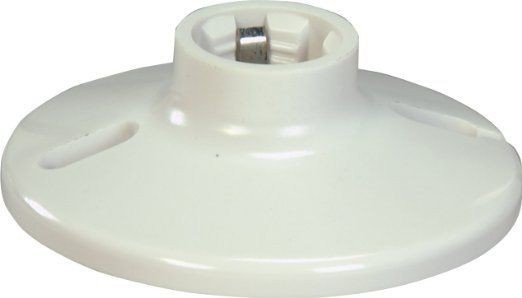

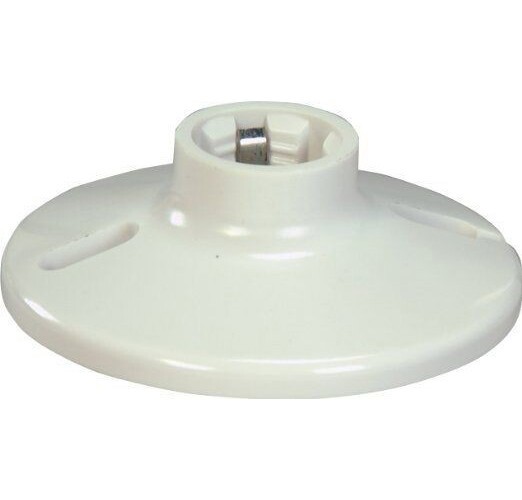

EATON Eaton Wiring Devices Arrow Hart™ S1174W-SP-L Ceiling Receptacle Lampholder With Keyless Switch, 660 W Lamp, 250 VAC, Medium

Selected EATON Eaton Wiring Devices Arrow Hart™ S1174W-SP-L Ceiling Receptacle Lampholder With Keyless Switch, 660 W Lamp, 250 VAC, Medium
EATON Eaton Wiring Devices Arrow Hart™ S1174W-SP-L Ceiling Receptacle Lampholder With Keyless Switch, 660 W Lamp, 250 VAC, Medium

Documents

Short Description

Our extensive lampholder line covers applications inside and outside the home, incandescent and fluorescent lamp loads, temporary lighting needs and a variety of adapters for new and replacement lighting applications. they are ideal for areas such as garages, closets, attics, basements, utility rooms, sheds and outbuildings.

Features

  • One piece construction
  • Mounts on 4 in outlet boxes with breakout for 3.25 in box mounting
  • Leads are 6 in, 221 deg F (105 deg C) insulated stranded NO 16, stripped 0.75 in
  • Top wire versions have terminal screws backed out ready for wiring without removing interior
  • Push wire terminals are top wired with two push-in terminals and two screw terminals for continuous wiring
  • Plastic models made with high-temperature thermoset plastic to reduce breakage

Specification

Lamp Base
Medium
Lamp Wattage
660 W
Material
Thermoset Plastic
Mounting Type
Ceiling
Minimum Order Qty
1
Order Interval
1
Color
White
Connection Type
Wire Lead
Terminal Type
Wire
Voltage Rating
250 VAC
Dimensions
4.56 in Dia x 1.52 in H
Catalog ID
EAGS1174W-SP
Standard & Approvals
cULus Listed, NOM 426, NFTA, RoHS Compliant
Application
For areas such as garages, closets, attics, basements, utility rooms, sheds and outbuildings
Type
Keyless Ceiling Receptacle
