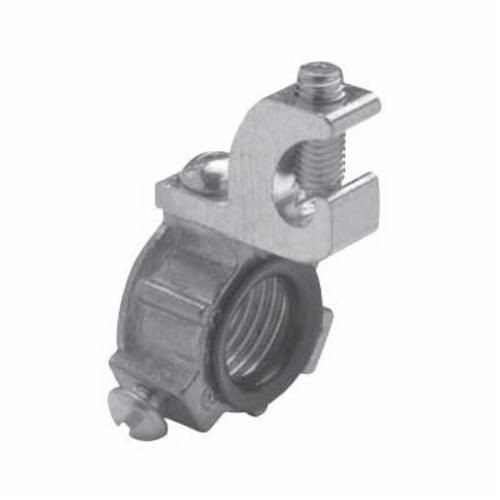

Crouse-Hinds GLL9 250 Lazy-Lug Ground Bushing, 3-1/2 in Trade, 250 kcmil Wire Min, 6 AWG Wire Max, Malleable Iron

Selected GLL9250Crouse-Hinds GLL9 250 Lazy-Lug Ground Bushing, 3-1/2 in Trade, 250 kcmil Wire Min, 6 AWG Wire Max, Malleable Iron
GLL9250Crouse-Hinds GLL9 250 Lazy-Lug Ground Bushing, 3-1/2 in Trade, 250 kcmil Wire Min, 6 AWG Wire Max, Malleable Iron

Documents

Short Description

Eaton's Crouse-Hinds series is designed to the highest standard of safety and productivity to keep people safe and plants running reliably. The more demanding the environment, the likelier you are to find Eaton products at the center of operations.

Features

  • 100 lb per 100 weight
  • Plastic throat liner
  • 250 kcmil - 6 AWG Aluminum Lug for Copper/Aluminum Grounding Conductor cable size

Specification

Material
Malleable Iron
Temperature Rating
105 deg C
Trade Size
3-1/2 in
Type
Threaded
Application
For use on threaded rigid/IMC conduit to provide a means of grounding conduit through an insulated bushing
Standard & Approvals
UL E-6225, cUL Listed, RoHS Compliant
AC Cable Size
250 kcmil - 6 AWG
