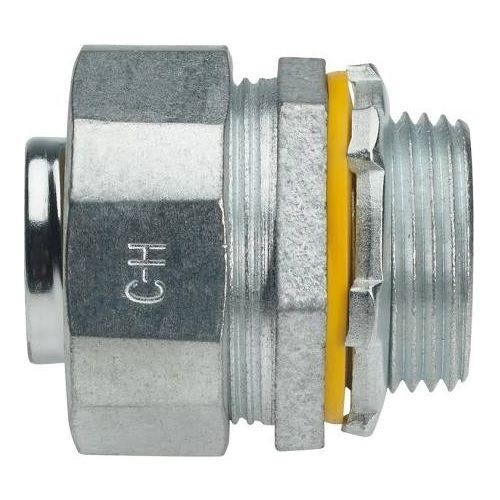

Crouse-Hinds Liquidator™ LT200 Non-Insulated Liquid Tight Conduit Connector, 2 in Trade, Straight, Malleable Iron, Electroplated Zinc

Selected Crouse-Hinds Liquidator™ LT200 Non-Insulated Liquid Tight Conduit Connector, 2 in Trade, Straight, Malleable Iron, Electroplated Zinc
Crouse-Hinds Liquidator™ LT200 Non-Insulated Liquid Tight Conduit Connector, 2 in Trade, Straight, Malleable Iron, Electroplated Zinc

Short Description

Our liquidtight product line offers high-quality, high performance fittings. Designed to the toughest standards and integrating the latest technology, not only do you get a reliable and durable product, you also get one that reduces installation time and cost. Our versatile lines of liquidtight fittings are designed for a wide range of industrial, commercial and residential applications.

Features

  • Flexible metallic conduit and fittings protect conductors from mechanical damage due to vibration and movement and seal out cutting oils, coolants, water, dust
  • For wiring of machine tools, motors, transformers, food processing equipment, robotics, air conditioning units, illuminated storefront signs and billboards
  • Liquidtight, raintight, oiltight for protection and long life in wet, dusty and corrosive environments
  • Hex shaped gland nut allows for easy wrenching, providing a fast, tight installation
  • Reusable, long ferrule prevents pull-out and tight bend conduit pop-out
  • Furnished with locknut and sealing ring
  • 3/4 in L thread
  • Cupped long grounding ferrule is distortion-free
  • Assurance of safe and reliable performance end-user peace of mind
  • Provides rugged durability in concrete applications
  • Polyethylene gland nut sealing ring, thermoplastic elastomer sealing gasket, steel or aluminum locknut, malleable iron or aluminum gland nut, steel ferrule
  • -40 to 85 deg temperature rating

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Angle
Straight
Finish
Electroplated Zinc
Suitable For Use With
Flexible Metallic Liquidtight Conduit
Trade Size
2 in
Type
Non-Insulated
Dimensions
1-3/4 in L x 3 in W
Catalog ID
CHNLT200
Standard & Approvals
UL 467, 514B file No.E-19189, cUL C22.2 No.18F, cULus Listed, RoHS Compliant, Class I, Division 2, Class II, Divisions 1 and 2, Class III, Divisions 1 and 2
Application
Machine Tool Manufacturers, Electric Power Generating Plants, Waste Treatment Facilities, Paint Manufacturing Facilities, Automobile Manufacturing Facilities, Aerospace Industries, Breweries, Food Processing Plants, Pulp and Paper Mills, Petroleum Refineries, Chemical and Petrochemical Plants
