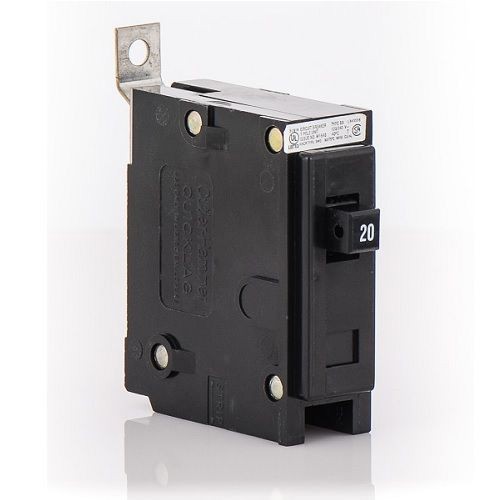

EATON QuickLag® BAB1020 Type BAB Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable Thermal Magnetic Trip

Selected BAB1020EATON QuickLag® BAB1020 Type BAB Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable Thermal Magnetic Trip
BAB1020EATON QuickLag® BAB1020 Type BAB Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 Poles, Non-Interchangeable Thermal Magnetic Trip

Documents

Short Description

EATON® bolt-on miniature circuit breakers offer superior protection for panelboards. They are also switching duty rated for 120 VAC fluorescent light applications. Easy to securely install. Choose from one-, two-, or three-pole designs. Built and listed to UL 489. All products 15 to 100 A are HACR rated. Choose from Bolt-On Types BAB, QBHW, HBAX, HBAW.

Features

  • Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
  • Field-mountable accessories make installation and on-site custom configuration easy
  • Compact designs available to minimize panel size
  • Fixed instantaneous trip
  • Cu/Al wire
  • Non-interchangeable trip

Specification

Interrupt Rating
10
Mounting Type
Bolt-On
Number Of Poles
1
Phase
1
Temperature Rating
40 deg C
Trip Type
Thermal Magnetic/Long Time/Instantaneous
Type
Type BAB Molded Case
Voltage Rating
120/240 VAC
Wire Size
14 to 4 AWG
Application
For panelboards
Standard & Approvals
UL Listed, CSA Certified
Amperage Rating
20 A
Dimensions
3 in L x 1 in W x 2-1/2 in H
Connection Type
Load Lug
