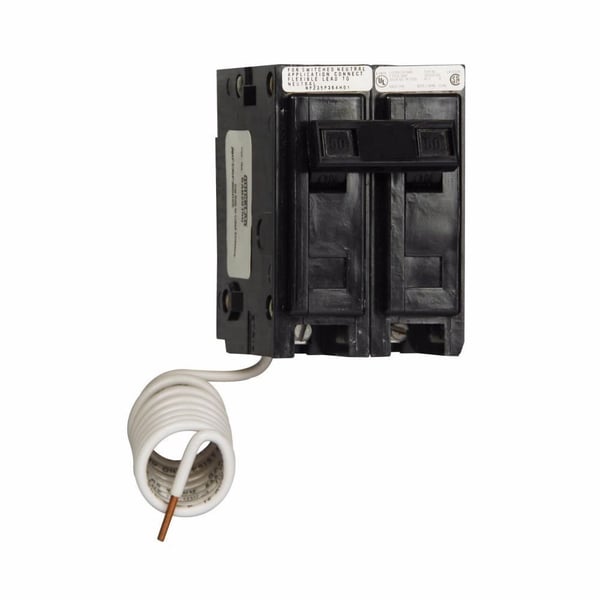

EATON QuickLag® BAB2050S Type BAB Miniature Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Shunt/Thermal Magnetic Trip

Selected BAB2050SEATON QuickLag® BAB2050S Type BAB Miniature Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Shunt/Thermal Magnetic Trip
BAB2050SEATON QuickLag® BAB2050S Type BAB Miniature Circuit Breaker, 120/240 VAC, 50 A, 10 kA Interrupt, 2 Poles, Non-Interchangeable/Shunt/Thermal Magnetic Trip

Documents

Short Description

Eaton bolt-on miniature circuit breakers offer superior protection for panelboards. they are also switching duty rated for 120 VAC fluorescent light applications. easy to securely install. choose from 1, 2 or 3-pole designs. built and listed to UL 489. all products 15 to 100 A are HACR rated. choose from bolt-on types BAB, QBHW, HBAX and HBAW.

Features

  • Flexible power feed connection (wire size and position) offers product uniformity as well as ease of installation
  • Field mountable accessories make installation and on site custom configuration easy
  • Compact designs available to minimize panel
  • Switching duty rated for 120 VAC fluorescent light applications
  • 120/208/240 VAC shunt trip

Specification

Frequency Rating
50 to 60 Hz
Interrupt Rating
10 kA
Mounting Type
Bolt-On
Number Of Poles
2
Phase
1
Temperature Rating
40 deg C
Type
Type BAB
Voltage Rating
120/240 VAC
Wire Size
14 to 4 AWG
Application
Circuit Protection and Industrial Applications
Standard & Approvals
UL 489, CSA Certified, HACR Rated
Amperage Rating
50 A
Connection Type
Steel Box Lug
Dimensions
12-1/2 in L x 7-1/2 in W x 5 in H
Trip Type
Non-Interchangeable/Shunt/Thermal Magnetic
