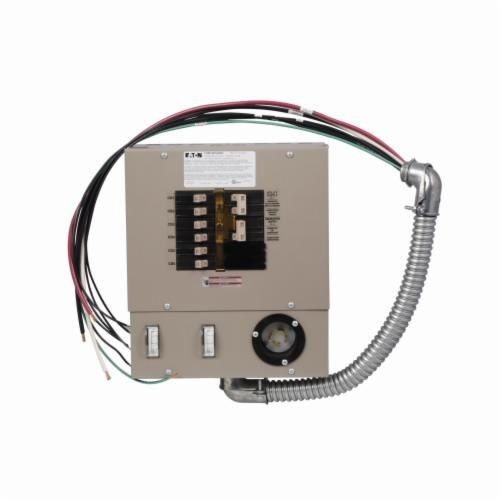

EATON CH6EGEN2060 Emergency Generator Panel, 13 in L x 11.2 in W x 4.4 in D

Selected CH6EGEN2060EATON CH6EGEN2060 Emergency Generator Panel, 13 in L x 11.2 in W x 4.4 in D
CH6EGEN2060EATON CH6EGEN2060 Emergency Generator Panel, 13 in L x 11.2 in W x 4.4 in D

Short Description

A combination of a manual transfer switch and a built-in power inlet box. Utilized in conjunction with a portable generator for powering emergency circuits during a power outage.

Features

  • 60 A utility breaker rating
  • 60/20 A main/emergency current rating
  • 5-1P151-1P20 feeder breaker
  • Mechanically interlocked main disconnects prevent paralleling of normal and emergency power source
  • Panel and components sold separately
  • Integral plug-in generator connection
  • Includes dual wattmeter for load balancing

Specification

Length
13 in
Minimum Order Qty
1
Order Interval
1
Video
https://www.youtube.com/watch?v=1Z5-U-A4frU
Amperage Rating
20/60 A
Breaker Type
Type CH/CHT
Enclosure Type
NEMA 1
Series
CH Series
Depth
4.4 in
Catalog ID
C-HCH6EGEN2060
Number of Circuits
6
Material
Sturdy Copper
Standard & Approvals
UL 67/1008 Listed
Application
For residential, sgricultural and light commercial applications
Switch Type
Manual Close
Power Rating
5000 W
Width
11.2 in
