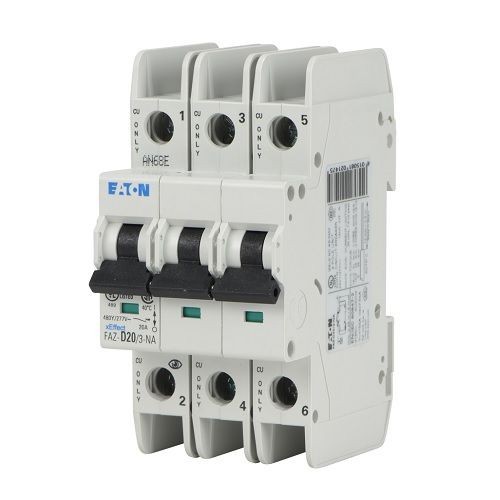

EATON FAZ-D20/3-NA Current Limiting Miniature Circuit Breaker, 277/480 VAC, 20 A, 10 to 14 kA Interrupt, 3 Poles, 10 to 20X/D-Curve Thermal Magnetic Trip
EATON FAZ-D20/3-NA Current Limiting Miniature Circuit Breaker, 277/480 VAC, 20 A, 10 to 14 kA Interrupt, 3 Poles, 10 to 20X/D-Curve Thermal Magnetic Trip
SKU: C-HFAZ-D20/3-NA
Manufacturer Part Number: FAZ-D20/3-NA
UPC: 401508102147
Documents
Features
- Current-limiting design provides fast short circuit interruption, reducing the let-through energy that can damage the circuit
- Suitable for branch circuit device protection
- Thermal magnetic overcurrent protection
- Trip-free design - breaker can not be defeated by holding the handle in the ON position
- Captive screws cannot be lost
- SWD (switching duty) suitable for switching fluorescent lighting loads (In =20 A)
- Field-installable shunt trip and auxiliary switch subsequent mounting
- Module width of only 17.7 mm (per pole)
- Contact position indicator (red/green)
- Possibility for sealing the toggle in ON or OFF position
Specification
| Frame | 40A |
|---|---|
| Frequency Rating | 50/60 |
| Interrupt Rating | 10 |
| Mounting Type | DIN Rail |
| Number Of Poles | 3 |
| Temperature Rating | 40 deg C |
| Trip Type | Thermal Magnetic |
| Type | Type FAZ-NA |
| Application | Circuit Protection and Industrial Applications |
| Standard & Approvals | ARRA, Buy American Act and RoHS Compliant, CSA C22.2 No. 235, IEC 60947-2, VDE, ABS Compliant, UL 489 |
| Amperage Rating | 20 A |
| Connection Type | Screw |
| Dimensions | 2.97 in W x 2.1 in D x 4.13 in H |
| Wire Size | 18 to 10 AWG, 18 to 6 AWG |
| Voltage Rating | 277/480 VAC |
| Trip Range | 10-20X A |
