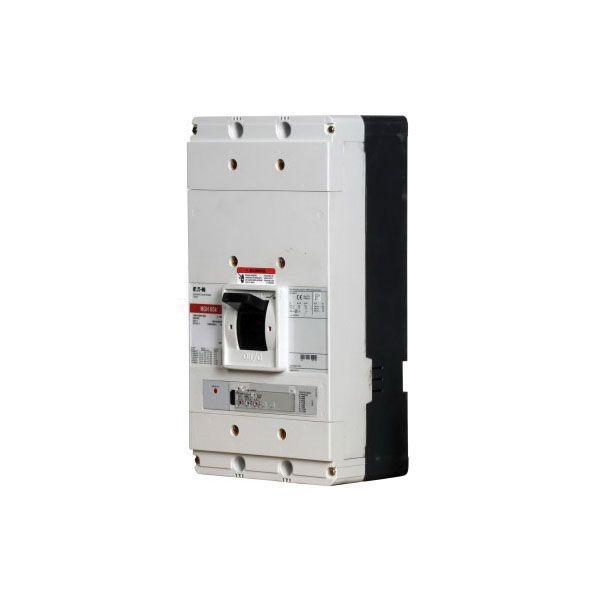

EATON NGS312035E Type NGS Molded Case Circuit Breaker, 480 VAC, 1200 A, 50/85 kA Interrupt, 3 Poles, Electronic LSG Trip

Selected NGS312035EEATON NGS312035E Type NGS Molded Case Circuit Breaker, 480 VAC, 1200 A, 50/85 kA Interrupt, 3 Poles, Electronic LSG Trip
NGS312035EEATON NGS312035E Type NGS Molded Case Circuit Breaker, 480 VAC, 1200 A, 50/85 kA Interrupt, 3 Poles, Electronic LSG Trip

Documents

Short Description

Series G molded case circuit breakers are designed for circuit protection needs across the globe. A complete line of user friendly accessories and high performance interruption ratings meet a host of different application, industry and regional requirements.

Features

  • Compact design frees up panel space
  • Common field fit internal accessories make installation and custom configuration easy
  • Advanced trip unit functionality offers a wide range of adjustment for maximum flexibility
  • Patented contact design features high speed "blow open" action, resulting in superior performance
  • HACR rated
  • Suitable for reverse feed use
  • 80% rated
  • Imperial tapped line and load terminal

Specification

Frame
NG
Frequency Rating
50/60 Hz
Interrupt Rating
50 kA at 480 VAC
Number Of Poles
3
Minimum Order Qty
1
Order Interval
1
Connection Type
Line/Load Terminal
Dimensions
6 x 9 x 9 in
Temperature Rating
40 deg C
Voltage Rating
480 VAC
Application
Industrial Application
Standard & Approvals
UL 489, CSA C22.2 No. 5-02, CE, NEC, CCC Certified, IEEE 1584-2002, IEC 60947-2, Exceed Federal Specification Classification W-C-375b
Type
Type NGS
Trip Type
Digitrip Electronic 310 LSG
Series
G Series
Catalog ID
C-HNGS312035E
Amperage Rating
1200 A
Video
https://www.youtube.com/watch?v=LcFMAGwrZvM
Includes
Frame, Trip Unit, Standard Terminals, Mounting Hardware
