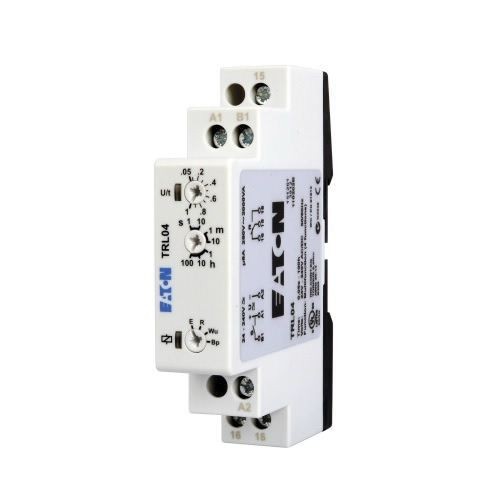

EATON TRL04 4-Function Compact Universal Timing Relay, 0.05 s to 100 hr Setting, 24 to 240 VAC/VDC, SPDT Contact, 1 Pole

Selected TRL04EATON TRL04 4-Function Compact Universal Timing Relay, 0.05 s to 100 hr Setting, 24 to 240 VAC/VDC, SPDT Contact, 1 Pole
TRL04EATON TRL04 4-Function Compact Universal Timing Relay, 0.05 s to 100 hr Setting, 24 to 240 VAC/VDC, SPDT Contact, 1 Pole

Documents

Short Description

Eaton's universal TR series timers are our most flexible and cost-effective timing relays available. products are available with up to seven user-selectable functions and seven user-selectable time ranges. Each unit is DIN rail mountable with a direct connection, eliminating the need for additional sockets. The universal TR series timers are available in SPDT and DPDT contact configurations, and have a compact IEC-style footprint and a universal input voltage range for AC and DC applications.

Features

  • Multiple user-selectable timing functions and timing ranges in a single unit reduce product variations and stock keeping units
  • Universal input voltages from 12 or 24 to 240 VAC/VDC eliminate the need to order and stock separate coil voltages
  • Compact, DIN rail mountable case reduces panel size
  • Advanced LED indication makes troubleshooting easy
  • Staggered terminal locations allow access to lower-level terminals after wiring
  • Self-extinguishing plastic enclosure material
  • On/OFF delay, power triggered, single shot leading edge voltage controlled, flasher-pause first functions

Specification

Mounting Type
DIN Rail
Number Of Poles
1
Operation Mode
4-Function
Dimensions
2.56 in L x 3.5 in W x 3.43 in H
Voltage Rating
24 to 240 VAC/VDC
Application
For high variability operations, such as systems integrators, distributors, and small equipment manufacturers, the compact design saves panel space and the low cost and high flexibility of the units reduce inventory requirements
Contact Form
SPDT
Enclosure Type
IP40
Amperage Rating
8 A
Standard & Approvals
cULus Listed, CE Certified, RoHS Compliant, TUV, IEC/EN 61812
Time Setting
0.05 sec to 100 hr
