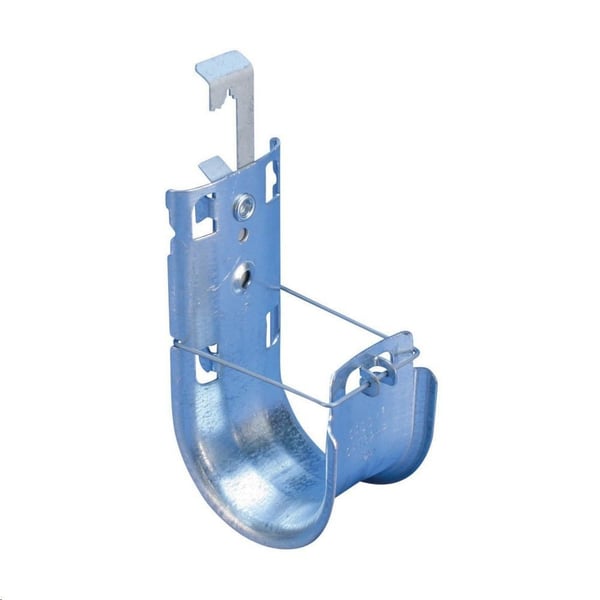

nVent ERICO CAT16HP4Z34 J-Hook With Multi-Function Clip, 1 in, 30 lb Load, Spring Steel

Selected CAT16HP4Z34nVent ERICO CAT16HP4Z34 J-Hook With Multi-Function Clip, 1 in, 30 lb Load, Spring Steel
CAT16HP4Z34nVent ERICO CAT16HP4Z34 J-Hook With Multi-Function Clip, 1 in, 30 lb Load, Spring Steel

Short Description

ERICO is a leading global designer, manufacturer and marketer of precision-engineered specialty metal products serving niche markets in a diverse range of electrical, construction, utility and rail applications. The company is headquartered in Solon, Ohio, USA with a network of sales locations serving more than 30 countries and with manufacturing and distribution facilities worldwide. ERICOs well-known brand names include: CADDY electrical and mechanical fixings, fasteners and support. The CADDY brand is known for offering contractors high quality, innovative solutions. CADDY products deliver superior technical performance and are designed for simple and intuitive installation at a lower total installed cost.

Features

  • Quick attachment to threaded rod or wire
  • Fully adjustable and easy to relocate to accommodate changes once installed
  • Provides optimal support for high performance data cable, up to and including Cat 5e, Cat 6, Cat 6A, Cat 7 and fiber optic
  • Provides superior fill capacity and load rating over most other non-continuous cable support alternatives
  • Rounded edges on J-hooks provide proper bend radius support for high performance data cables
  • Cost-effective alternative to expensive cable tray
  • 1.07 sq in area
  • 30 lb (Static)
  • Pregalvanized Caddy Armour finish

Specification

Load Capacity
30 lb
Material
Spring Steel
Size
1 in
Application
Datacom and Low Voltage, Electrical Fixing and Fastening
Standard & Approvals
ISO/IEC 14763-2, ANSI/TIA 568, 569, cULus Listed, RoHS Compliant
Finish
Pre-Galvanized
Specifications
1/4 in Rod, 12 to 8 AWG Wire
