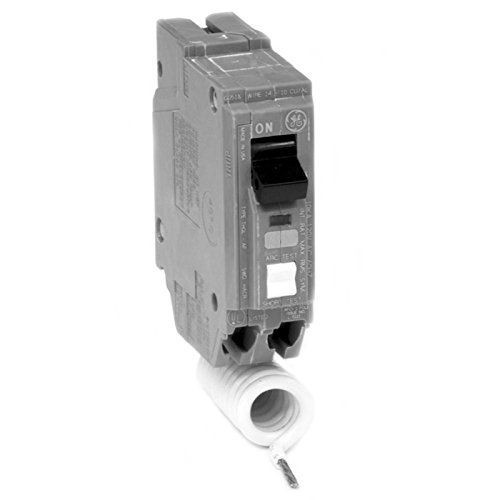

General Electric Q-Line THQL1120AF2 Type THQL Thermal Magnetic Arc Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA, 1 Pole, Long Time/Instaneous Trip
General Electric Q-Line THQL1120AF2 Type THQL Thermal Magnetic Arc Fault Circuit Breaker, 120/240 VAC, 20 A, 10 kA, 1 Pole, Long Time/Instaneous Trip
SKU: G-ETHQL1120AF2
Manufacturer Part Number: THQL1120AF2
UPC: 783164652819
Features
- Quick make / quick break mechanisms
- Easy to spot trip indication ensures safety and reliability
- Multi pole circuit breakers incorporate internal common trip
- The unit has tin plated copper stabs to create reliable, permanent and corrosion resistant connections
- Circuit breaker features Li trip and HACR, SWD special marking
- The case is made of heat resistant thermoset for stability and structural integrity
Specification
| Interrupt Rating | 10 |
|---|---|
| Mounting Type | Plug-In |
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Dimensions | 3-9/32 in H x 1 in W x 2-3/8 in D |
| Phase | 1 |
| Trip Type | Long Time/Instaneous |
| Type | Type THQL Thermal Magnetic |
| Voltage Rating | 120/240 V |
| Wire Size | 14 to 10 AWG |
| Application | For reverse feed |
| Standard & Approvals | UL E11592, GSA Compliant |
| Connection Type | Box |
| Catalog ID | G-ETHQL1120AF2 |
