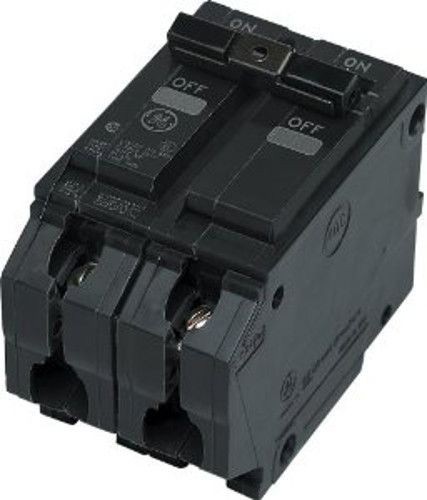

General Electric THQL2130 Type THQL Molded Case Circuit Breaker, 120/240 VAC, 30 A, 10 kA, 2 Poles, Non-Interchangeable Trip

Selected filesg ethql2130
filesg ethql2130

Related Products

Short Description

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q Line used for connection to load centers and lighting panels. All Q Line circuit breakers feature Quick-make / Quick-break mechanisms, common trip bars and easy to spot trip indication to ensure safety and reliability. Q Line breakers are available in 1, 2 and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories and can be ordered for use in HID applications.

Features

  • LI trip function
  • R5 GO schedule
  • For heating, air conditioning and refrigeration
  • Incorporates internal common trip bar
  • 12 to 8 AWG aluminum and 14 to 8 AWG copper
  • Box lug load termina

Specification

Mounting Type
Plug-In
Phase
1
Type
Type THQL
Temperature Rating
65 to 75
Dimensions
2-3/8 in L x 1 in W x 3-9/32 in H
Interrupt Rating
10
Voltage Rating
120/240 V
Amperage Rating
30 A
Number Of Poles
2
Standard & Approvals
GSA Compliant, UL E11592
Application
For commercial and residential applications
Trip Type
Non-Interchangeable
Frame
Q-Line
Wire Size
12 to 8 AWG
