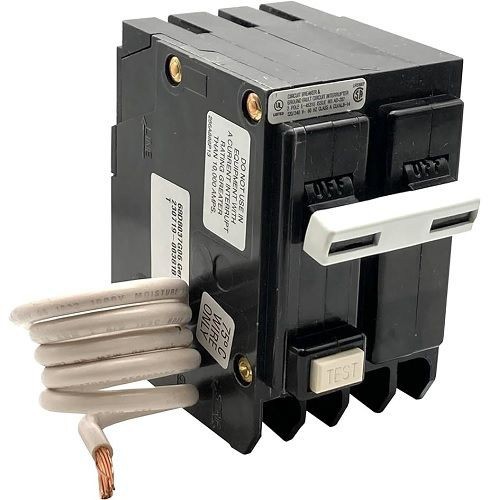

GE Q-Line® Self Test Ground Fault Circuit Breaker, 120/240 VAC, 50 A, 10 kA, 2 Poles, Non-Interchangeable Trip

Selected GE Q-Line® Self Test Ground Fault Circuit Breaker, 120/240 VAC, 50 A, 10 kA, 2 Poles, Non-Interchangeable Trip
GE Q-Line® Self Test Ground Fault Circuit Breaker, 120/240 VAC, 50 A, 10 kA, 2 Poles, Non-Interchangeable Trip

Documents

Short Description

Q line circuit breakers are one-inch wide per pole, compact, thermal-magnetic devices designed for residential and commercial applications. The QL breakers are plug-in versions of the Q line used for connection to load centers and lighting panels. All Q line circuit breakers feature quick-make/quick-break mechanisms, common trip bars, and easy to spot trip indication to ensure safety and reliability. Q line breakers are available in 1, 2, and 3 pole versions, can be ordered with auxiliary contact and shunt trip accessories, and can be ordered for use in HID applications.

Features

  • The National Electrical Code requires GFCI protection of receptacles located outdoors, in bathrooms, garages and spa areas
  • This applies not only to new construction, but also to existing homes
  • When an electrical outlet is replaced in a location that requires ground-fault protection, the new outlet must be GFCI protected, according to the NEC
  • The GFCI circuit interrupter provides protection against overloads, short circuits and ground faults
  • It detects very low levels of electrical current leakage (ground faults), and acts quickly to shut off power, preventing serious shock
  • Push button test validates the ground fault detection capability of the breaker
  • Class A 5 mA ground fault circuit interrupter
  • Quick make, quick break
  • Fixed thermal magnetic trip unit
  • Fixed long time
  • Fixed instantaneous
  • Suitable for reverse feed
  • Continuous current rated: Standard
  • Trip function: LIG
  • Special markings: HACR
  • Miniature circuit breakers
  • 60 deg C/75 deg F conductor rating
  • Box type terminals
  • Multi-pole breakers incorporate internal common trip

Specification

Interrupt Rating
10 kA
Number Of Poles
2
Phase
1
Series
Q-Line®
Trip Type
Non-Interchangeable
Type
Self Test
Voltage Rating
120/240 VAC
Amperage Rating
50 A
Connection Type
1 in Plug-In
Dimensions
3-9/32 in H x 2 in W x 2-3/8 in D
Standard & Approvals
CSA Certified, cULus Listed, Federal Specification WC-375B, UL File No E51075, UL 489
Wire Size
14 to 8 AWG Cu, 12 to 8 AWG Al
Trip Range
5 mA
Frame
THQL
