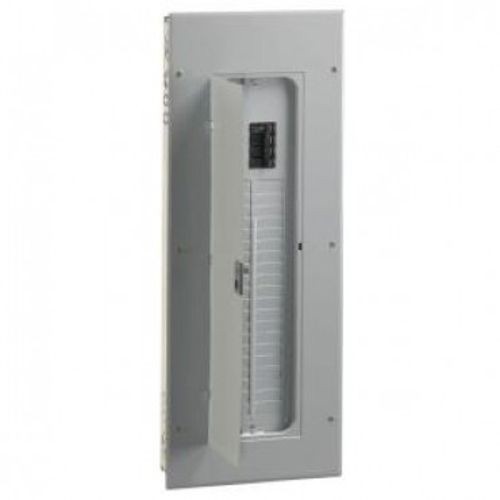

General Electric PowerMark Gold™ TM4020CCU Standard Main Breaker Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
General Electric PowerMark Gold™ TM4020CCU Standard Main Breaker Load Center, 120/240 VAC, 200 A, 22 kA Interrupt
SKU: G-ETM4020CCU
Manufacturer Part Number: TM4020CCU
UPC: 783164112627
Features
- Suitable for use as service entrance equipment when installed in accordance with the National Electric Code
- UL listed (panelboards no 67)
- 60/75 deg C conductor rating
- Single phase
- TGK42 equipment ground kit order separately
- Combination flush/surface front
- Top or bottom feed location
- 22kAIC RMS symmetrical, except where noted
- Box no 13
- RD GO schedule
Specification
| Interrupt Rating | 22 |
|---|---|
| Mounting Type | Plug-In |
| Number of Circuits | 40 |
| Series | TM Series |
| Type | Standard |
| Voltage Rating | 120/240 V |
| Wire Size | 1 AWG to 250 kcmil Cu, 2/0 AWG to 250 kcmil Al |
| Wiring Configuration | 3-Wire |
| Standard & Approvals | CSA Cerified, GSA Compliant, UL Listed |
| Amperage Rating | 200 A |
| Breaker Mounting | Plug-In |
| Breaker Type | THQL |
| Bus Rating | 200 |
| Enclosure Box Size | 39-3/16 in H x 14 in W x 3-3/4 in D |
| Enclosure Type | NEMA 1 |
| Dimensions | 40.56 in H x 15.36 in W x 3.75 in D |
