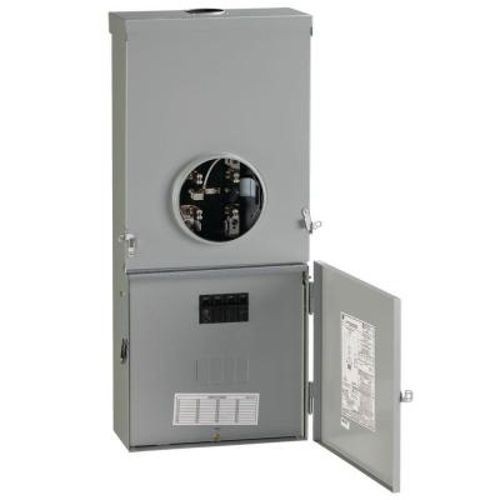

***CLOSEOUT*** GE TSMR420CSCU 3-Wire Ringless Meter Socket Load Center With Bonded Neutrals, Horn Bypass, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
***CLOSEOUT*** GE TSMR420CSCU 3-Wire Ringless Meter Socket Load Center With Bonded Neutrals, Horn Bypass, 120/240 VAC, 200 A, 1 Phase, NEMA 3R Enclosure
SKU: G-ETSMR420CSCU
Manufacturer Part Number: TSMR420CSCU
UPC: 783164400250
Documents
Features
- 3-wires
- (4) 1 in spaces 1-pole, (2) 1 in spaces 2-poles, (8) 1/2 in spaces 1-pole, (3) 1/2 in spaces 2-poles
Specification
| Mounting Type | Surface |
|---|---|
| Phase | 1 |
| Voltage Rating | 120/240 VAC |
| Amperage Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Feed Type | Overhead/Underground |
| Closeout | YES |
| Dimensions | 33-9/16 in H x 14-9/16 in W x 6-3/16 in D |
| Standard & Approvals | UL Listed, XCEL Energy Approved |
| Wire Size | 6 AWG to 350 kcmil Al/Cu |
| Type | Type MB Ringless |
