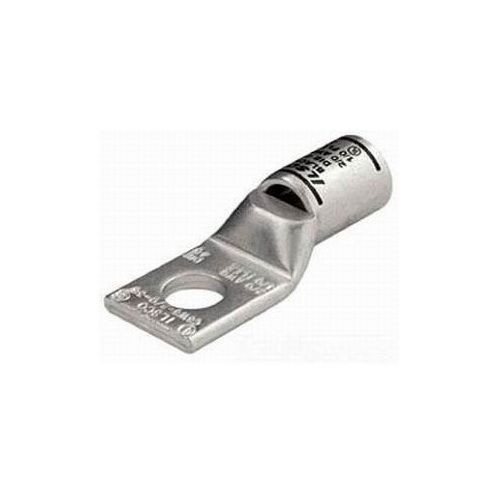

ILSCO® SureCrimp® CSWS-2/0-14 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 4 to 2/0 AWG Flex Copper Conductor, Die Code: ILD-45, 1/4 in Stud, Tin Plated Copper

Selected ILSCO® SureCrimp® CSWS-2/0-14 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 4 to 2/0 AWG Flex Copper Conductor, Die Code: ILD-45, 1/4 in Stud, Tin Plated Copper
ILSCO® SureCrimp® CSWS-2/0-14 CSWS 1-Hole Lug Compression Connector Sight Hole With Sight Hole, 4 to 2/0 AWG Flex Copper Conductor, Die Code: ILD-45, 1/4 in Stud, Tin Plated Copper

Documents

Features

  • Manufactured from high strength seamless copper tubing, electro tin plated
  • Chamfered entry
  • Color coded
  • Suitable for use in circuits rated 35KV or less, proper high voltage spacing and insulation techniques must be used
  • Offers maximum conductivity and excellent crimping characteristics
  • Provides low contact resistance
  • For easy conductor insertion
  • Identifies the proper compression die
  • Application versatility
  • Reduces inventory requirements
  • For grounding and bonding applications
  • 1 mounting hole
  • Alternate conductor size of 1/0 FLEX
  • Expanded conductor size of 2/0-4 AWG
  • 0.812 in L Strip, 0.281 in Dia Stud Hole

Specification

Material
Copper
Series
CSWS
Stud Size
1/4 in
Temperature Rating
90 deg C
Type
1-Hole
Voltage Rating
600 VAC to 35 kV VAC
Application
For Bonding, Grounding and Terminating Connector
Standard & Approvals
UL 453G Listed, CSA LR-29601 Certified, NEBS3 Tested, RoHS Compliant
Conductor Size
2/0 AWG
Color Code
Black
Die Code
I-45
Tongue Size
0.875 in L x 0.811 in W
Overall Length
2.021 in
Barrel Style
Short/Standard
Barrel Size
3/4 in L
Dimensions
0.811 in W
