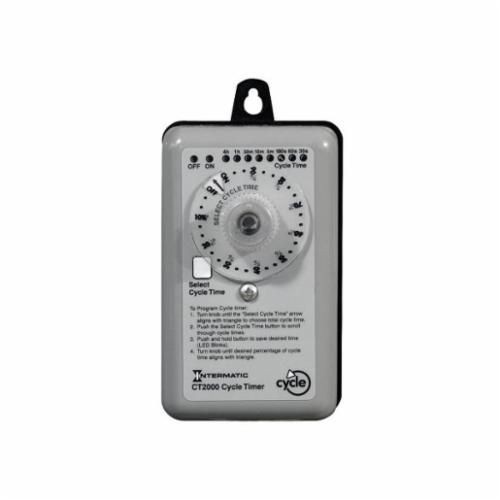

Intermatic® CT2000 Percentage Cycle Timer, 30 s to 4 hr Setting, 120/240 VAC, 1 hp, 2 hp hp, SPDT 1NO Contact, 1 Poles
Intermatic® CT2000 Percentage Cycle Timer, 30 s to 4 hr Setting, 120/240 VAC, 1 hp, 2 hp hp, SPDT 1NO Contact, 1 Poles
SKU: INTCT2000
Manufacturer Part Number: CT2000
UPC: 078275124363
Documents
Short Description
Features
- Provides 8 field selectable cycle durations: 30 seconds, 1 minute, 3 minutes, 5 minutes, 10 minutes, 30 minutes, 1 hour, and 4 hours
- Provides 30 separate detent positions for precise selection of percentage On time
- User settings stored in non-volatile memory
- Control buttons on front of timer
- No DIP switches to program cycle time
- Manual ON/OFF control allows for temporary or permanent override
- Designed to function in dusty, ammonia, and wash-down environments
- Able to withstand surge of up to 6000 VAC
- 20 Amp at 120/240 VAC/28 VDC resistive, 20 A at 240 VAC general purpose, 5 A at 240 VAC tungsten incandescent, 10 A at 277 VAC ballast fluorescent
- 470 VA at 240 VAC pilot duty
- 1 hp at 120 VAC/2 hp at 240 VAC
- 60 Hz
Specification
| Mounting Type | Wall |
|---|---|
| Number Of Poles | 1 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Amperage Rating | 20 A |
| Catalog ID | INTCT2000 |
| Contact Form | 1NO/SPDT |
| Dimensions | 5.75 in L x 3.5 in W x 2.8 in H |
| Enclosure Type | NEMA 3R |
| Voltage Rating | 120/240 VAC |
| Horsepower | 1 hp/2 hp |
| Standard & Approvals | cCSAus Certified, HVACR, RoHS Compliant |
| Application | Indoor/Outdoor, Fans, Misters, Foggers, Feeders, Process Equipments, Oil Pumps, Irrigation, Nurseries and HVACR |
| Time Setting | 30 sec - 4 hr |
| Temperature Rating | 14 to 129 deg F |
