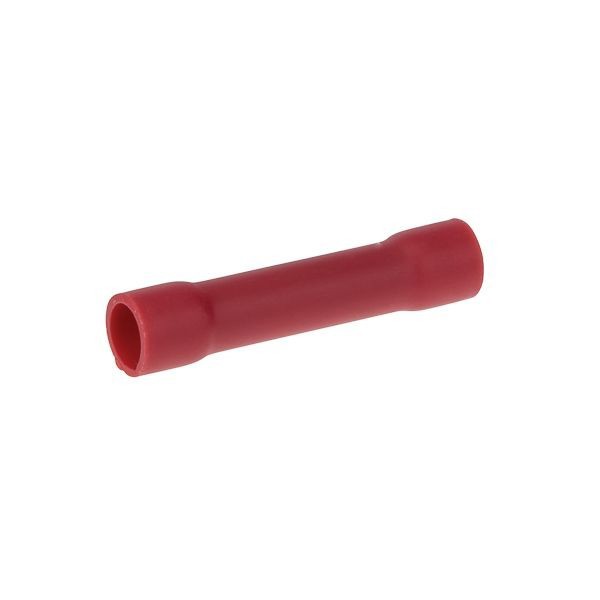

NSI Miniterms B8-V Butt Splice, 8 AWG Conductor, 1.398 in L, Seamless Barrel, Copper, Red
NSI Miniterms B8-V Butt Splice, 8 AWG Conductor, 1.398 in L, Seamless Barrel, Copper, Red
SKU: NSIB8-V
Manufacturer Part Number: B8-V
UPC: 662381067531
Features
- Center stop provides equal insertion of wires
- Stripped wires are inserted from each end and butt in the center
- A crimp at each end secures the connection
Specification
| Length | 1.398 in |
|---|---|
| Material | Copper |
| Minimum Order Qty | 25 |
| Order Interval | 25 |
| Barrel Type | Seamless |
| Color | Red |
| Conductor Size | 8 AWG |
| Finish | Electro-Plated Tin |
| Series | B Series |
| Temperature Rating | 75 deg C |
| Voltage Rating | 300 VAC |
| Application | Wire Splicing Applications |
| Standard & Approvals | cULus Listed, KM Approved |
| Catalog ID | NSIB8-V |
| Barrel Size | 0.177 in ID x 0.335 in OD |
| Specifications | 2-Terminal, Vinyl Insulation |
