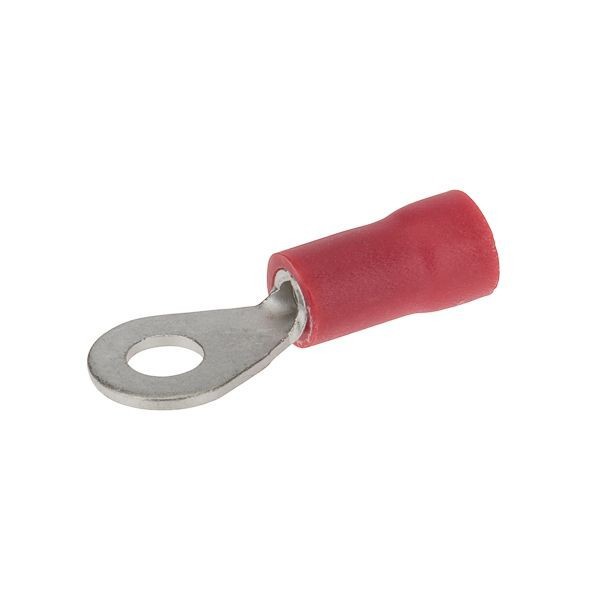

NSI Miniterms R22-6V-S R Series Standard Ring Terminal, 22 to 18 AWG Conductor, 0.826 in L, Brazed Seam Barrel, Copper, Red
NSI Miniterms R22-6V-S R Series Standard Ring Terminal, 22 to 18 AWG Conductor, 0.826 in L, Brazed Seam Barrel, Copper, Red
SKU: NSIR22-6V-S
Manufacturer Part Number: R22-6V-S
UPC: 662381060501
Documents
Features
- Basic tongue type ring terminal
- Safe and reliable connections, because it cannot be disconnected unless the screw is completely removed
Specification
| Length | 0.826 in |
|---|---|
| Material | Copper |
| Barrel Type | Brazed Seam |
| Color | Red |
| Conductor Size | 22 to 18 AWG |
| Series | R Series |
| Temperature Rating | 75 deg C |
| Type | Standard |
| Voltage Rating | 300 VAC |
| Application | Wire Termination Applications |
| Standard & Approvals | cULus Listed, KM Approved |
| Tongue Size | 0.314 in W |
| Specifications | 1-Terminal, Vinyl Insulated |
| Finish | Electro-Plated Tin |
| Catalog ID | NSIR22-6V-S |
| Barrel Size | 0.0669 in ID x 0.1614 in OD x 0.3937 in L |
| Order Interval | 25 |
| Minimum Order Qty | 25 |
| Stud Size | #6 |
