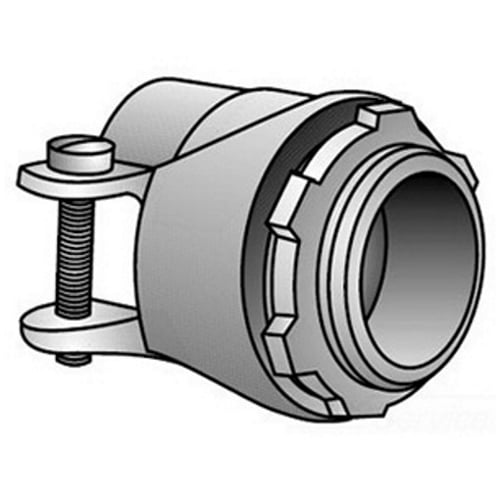

O-Z/Gedney C-8 Type C Straight Squeeze Conduit Connector With Locknut, 1/2 in Trade, 25/32 to 15/16 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated

Selected Data-Spec SheetO-Z/Gedney C-8 Type C Straight Squeeze Conduit Connector With Locknut, 1/2 in Trade, 25/32 to 15/16 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated
Data-Spec SheetO-Z/Gedney C-8 Type C Straight Squeeze Conduit Connector With Locknut, 1/2 in Trade, 25/32 to 15/16 in Cable Openings, For Use With Armored/FMC Cable, Malleable Iron, Zinc Electroplated

Documents

Features

  • Male NPS hub x set screw connection
  • 1/2 in thread length
  • End stopped
  • Zinc Electroplated

Specification

Material
Malleable Iron
Minimum Order Qty
1
Order Interval
1
Cable Openings
25/32 - 15/16 in
Catalog ID
OZGC-8
Dimensions
15/16 in L x 1-9/16 in W
Finish
Zinc Plated
Suitable For Use With
Armored Cable and Flexible Metal Conduit
Trade Size
1/2 in
Type
Type C Straight
Application
For grounding and securing armored cable and flexible metal conduit to boxes and enclosures
Standard & Approvals
UL 514B/E11852 Listed, CSA 009795/C22.2 No 18 Certified, Federal Specification W-F-406E, NEC 501-4(b), Class I, Division II, NEC 350-5, NEMA FB-1, RoHS Compliant
