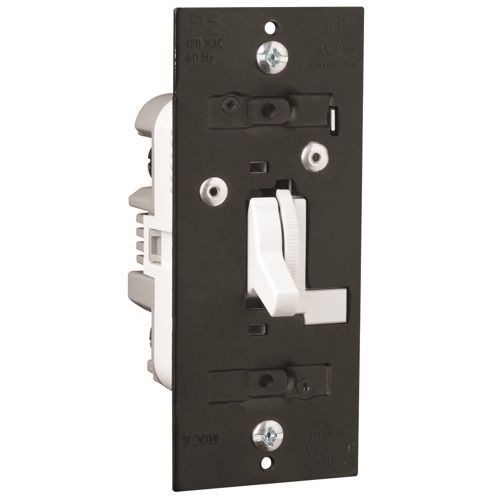

Pass & Seymour® TradeMaster® TD703PW 3-Way Toggle Dimmer, 120 VAC, 1 Poles, White

Selected Pass & Seymour® TradeMaster® TD703PW 3-Way Toggle Dimmer, 120 VAC, 1 Poles, White
Pass & Seymour® TradeMaster® TD703PW 3-Way Toggle Dimmer, 120 VAC, 1 Poles, White

Documents

Short Description

Pass & Seymour® dimmers extend bulb life and can reduce energy consumption by up to 30%. This versatile toggle dimmer provides easy ON-OFF operation and a separate preset allows for convenient, precise dimming control.

Features

  • Tough, impact resistant thermoplastic housing
  • No de-rating required in multi-gang operations
  • Uses conventional 3-way wiring when used in conjunction with a 3-way switch
  • Returns lights to previous level after a power failure

Specification

Lamp Type
Incandescent
Material
Thermoplastic
Number Of Poles
1
Start Type
Preset
Temperature Rating
0 to 40 deg C
Voltage Rating
120 VAC
Application
Commercial and Residential Applications
Standard & Approvals
RoHS Compliant
Color
White
Control
Toggle
Type
3-Way
Series
TradeMaster®
Power Rating
700
Dimensions
1-3/4 in W x 1-1/4 in D x 4-1/2 in H
