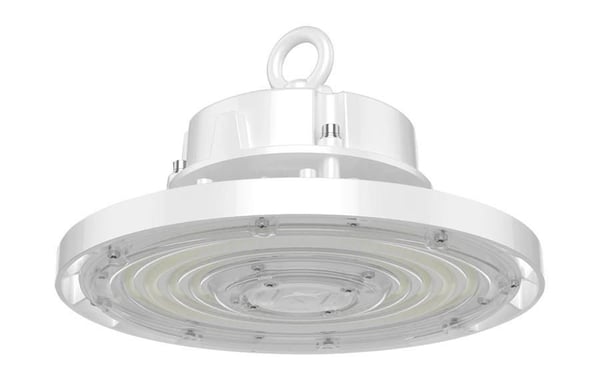

RAB H17 Field-Adjustable High Bay, LED Lamp, 120, 208, 240, 277 V
RAB H17 Field-Adjustable High Bay, LED Lamp, 120, 208, 240, 277 V
SKU: RABH17
Manufacturer Part Number: H17
UPC: 192552022026
Specification
| Series | H17 |
|---|---|
| Type | Field-Adjustable |
| Voltage Rating | 120, 208, 240, 277 V |
| Application | 7-step MacAdam Ellipse binning to achieve consistent fixture-to-fixture color |
| Standard & Approvals | BAA Compliant, ANSI C78.377-2017, DLC 5.1, Mercury Free, RoHS, IESNA LM-79 and LM-80, UL Listed, PROP65 |
| Minimum Order Qty | 1 |
| Order Interval | 1 |
| Average Life | 100000 hr |
| Ballast Type | 0 to 10 V Dimmable |
| Color Temperature | 3000,4000,5000 K |
| Dimensions | 6.38 in H x 10.25 in Dia |
| Enclosure Type | IP65 |
| Housing Material | Precision Die-Cast Aluminum |
| Lamp Type | LED |
| Lamp Wattage | 100, 120, 150 W |
| Lens Type | Polycarbonate |
| Light Output | 140.1 to 168.8 Lumens/W |
| Lumens | 15317 to 22224 Lumens |
| Mounting Type | Hook/Pendant |
| Color Rendering Index (CRI) | 83 to 86 CRI |
| Catalog ID | RABH17 |
| Amperage Rating | 0.86, 0.50, 0.43, 0.37, 1.03, 0.59, 0.51, 0.44, 1.24, 0.72, 0.62, 0.54 A |
| Includes | Driver includes wiring for 0-10V dimming systems |
