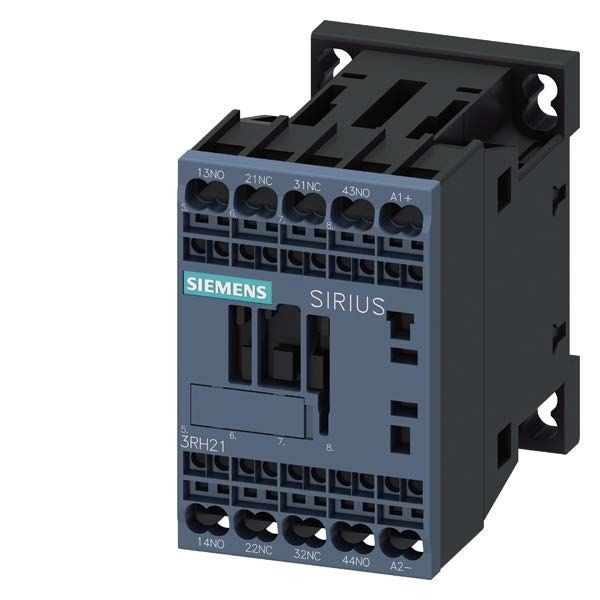

Siemens 3RH21222BB40 SIRIUS Contactor Relay, 2NO-2NC Contact, 24 VDC V Coil
Siemens 3RH21222BB40 SIRIUS Contactor Relay, 2NO-2NC Contact, 24 VDC V Coil
SKU: SIE3RH21222BB40
Manufacturer Part Number: 3RH21222BB40
EAN: 4011209786738
UPC: 662643903652
Specification
| Mounting Type | Rail/Snap-On/Threaded |
|---|---|
| Number Of Poles | 4 |
| Temperature Rating | -25 to 60 deg C |
| Standard & Approvals | CCC Certified, CSA Certified, UL Listed, KC Certified, EAC Certified, RCM Certified, CE Certified, VDE Approved, ABS Certified, Bureau Veritas Certified, Lloyd's Register, PRS Certified, RINA Certified, RMRS Certified, DNV-GL Approved, WEEE (2012/19/EU) |
| Coil Voltage | 24 VDC |
| Enclosure Type | IP20 |
| Terminal Type | Spring-Loaded |
| Series | 3RH2 |
| EANUCC13 | 4011209786738 |
| Contact Rating | A600/Q600 |
| Contact Form | 2NO-2NC |
| Dimensions | 70 mm H x 45 mm W x 73 mm D |
