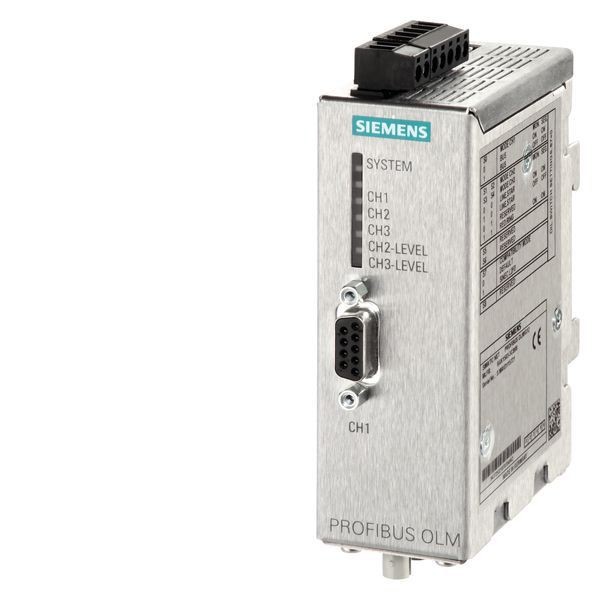

Siemens 6GK1503-2CB00 PROFIBUS Optical Link Module With (1) RS485, (1) Glass FOC Interface, Signaling Contact, Test Port, 24 VDC, 0.1 A, 9.6 kbps to 12 Mbps Communication
Siemens 6GK1503-2CB00 PROFIBUS Optical Link Module With (1) RS485, (1) Glass FOC Interface, Signaling Contact, Test Port, 24 VDC, 0.1 A, 9.6 kbps to 12 Mbps Communication
SKU: SIE6GK15032CB00
Manufacturer Part Number: 6GK15032CB00
EAN: 4019169852517
UPC: 662643424461
Documents
Specification
| Minimum Order Qty | 1 |
|---|---|
| Order Interval | 1 |
| Temperature Rating | 0 to 60 deg C |
| Voltage Rating | 24 VDC |
| Standard & Approvals | FM 3611 Class 1, Division 2, Group A/B/C/D/T4, EN 60079-0: 2006, EN 60079-15: 2005, EN 60079-28: 2007, II 3 (2) G Ex nA [opis] IIC T4 KEMA 09 ATEX 0173X, UL 60950-1, UL 1604, UL 2279-15, CSA C22.2 No. 60950-1/213-M1987 Class 1, Division 2, Group A/B/C/D/T4, Class 1, Zone 2, Group IIC T4, EN 61000-6-4/61000-6-2, CE Certified, C-TICK Certified, ABS Certified, Bureau Veritas Certified, DNV Approved, GL Certified, Lloyd's Register, NK Certified, WEEE (2012/19/EU), REACH Article No. 33 |
| Type | PROFIBUS |
| Terminal Type | 9-Pin Sub-D Socket/2/5-Pole Terminal Block |
| Dimensions | 112 mm H x 39.5 mm W x 74.5 mm D |
| Communication Rate | 9.6 kbps to 12 Mbps |
| Catalog ID | SIE6GK15032CB00 |
| Amperage Rating | 0.1 A |
| EANUCC13 | 4019169852517 |
