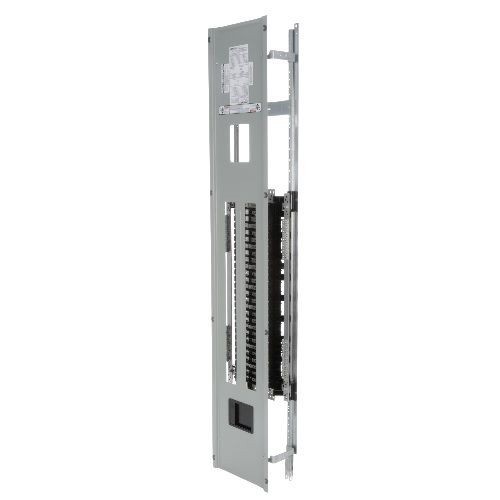

Siemens P1X54MC400CT Type P1 3-Phase Panelboard Interior, 208/120 VAC, 400 A

Pick Up Only
Selected Siemens P1X54MC400CT Type P1 3-Phase Panelboard Interior, 208/120 VAC, 400 A
Siemens P1X54MC400CT Type P1 3-Phase Panelboard Interior, 208/120 VAC, 400 A

Short Description

Type P1 unassembled panelboards are completely convertible from main lug to main breaker and vice versa. Additionally feed thru lugs or a subfeed circuit breaker up to 400 A can be added without increasing the box height.

Features

  • Interior is completely symmetrical allowing it to be changed from top to bottom feed by simply rotating the interior
  • UPB interior
  • 54-circuit
  • Without branch breaker

Specification

Housing Material
16 ga Steel
Minimum Order Qty
1
Order Interval
1
Amperage Rating
400 A
Breaker Type
BL/BLH/HBL
Bus Material
Copper
Enclosure Type
NEMA 1/3R/12
Wiring Configuration
4-Wire
Application
Lighting Loads and Branch Circuit Loads Applications
Includes
Interior, Hardware and Labels
Dimensions
74 in H x 20 in W x 5-3/4 in D
Catalog ID
SIEP1X54MC400CT
Standard & Approvals
ARRA, Buy American Act and RoHS Compliant, PB1/UL67 Listed
Type
Type P1 3-Phase
Voltage Rating
208/120 VAC
