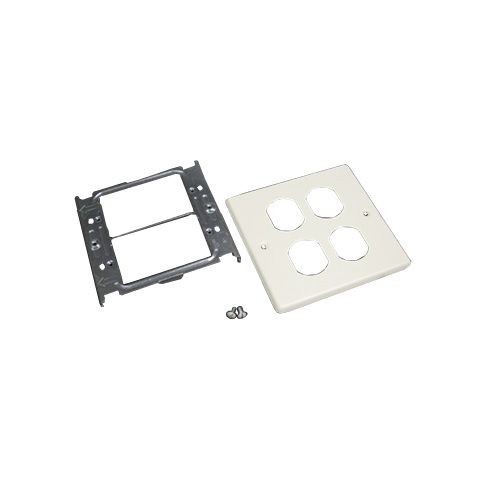

Wiremold® G4047BB 4047 Multi-Channel Overlapping Cover, For Use With 4000 Series Raceway, 15/20 A Duplex Receptacle, Steel, Ivory/Gray

Selected Wiremold® G4047BB 4047 Multi-Channel Overlapping Cover, For Use With 4000 Series Raceway, 15/20 A Duplex Receptacle, Steel, Ivory/Gray
Wiremold® G4047BB 4047 Multi-Channel Overlapping Cover, For Use With 4000 Series Raceway, 15/20 A Duplex Receptacle, Steel, Ivory/Gray

Documents

Short Description

Wiremold products work together seamlessly to save installation time, while providing enhanced flexibility and productivity in environments ranging from residential dwellings and educational institutions to meeting rooms and healthcare facilities.

Features

  • 600 V voltage rating
  • 2-gang with two duplex openings
  • Large cross section area, provides ample space for large wiring requirements
  • Complete line of fittings, provides complete wiring solution and allows for interconnection between raceway systems
  • Gray baked enamel and Ivory ScuffCoat finish makes a scratch resistant surface
  • Accepts 15A and 20A duplex receptacles and 106 style frames
  • Cover for two duplex receptacles

Specification

Material
Steel
Series
4047
Suitable For Use With
4000 Series Raceway
Type
Multi-Channel
Application
Commercial, Office and Residential Application
Standard & Approvals
cULus File E4376 Guide RJBT, Fittings File E41751 Guide RJPR, Base and Blank Cover Article 386 of NEC, Section 12-600 of CEC, RoHS Compliant
Dimensions
4-3/4 in OD x 5-1/8 in L
Color
Gray
Finish
Baked Enamel
